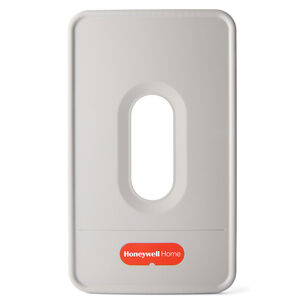

Honeywell TrueZONE® HZ432 Panel, 18 to 30 VAC, Gray, 8 in L x 1.86 in W x 13.42 in H, Import
Honeywell TrueZONE® HZ432 Panel, 18 to 30 VAC, Gray, 8 in L x 1.86 in W x 13.42 in H, Import
Honeywell TrueZONE® Panel, 18 to 30 VAC, VA Rating: 8.5 VA, 50/60 Hz, 4 Zones, Auto, Solid Wired Connection, 5 to 90% RH Non-Condensing Humidity Rating, 2 Cool/3 Heat Stages, Push Terminal, 18/20 AWG Wire, Gray, -40 to 165 deg F, 8 in L x 1.86 in W x 13.42 in H, Domestic/Import: Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,144.81 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
ChangeoverAuto
ColorGray
Connection TypeSolid Wired
Dimensions8 " L x 1.86 " W x 13.42 " H
Domestic/ImportImport
Frequency Rating50/60
Humidity Rating5 to 90% RH Non-Condensing
IncludesAT140 Transformer and C7735A Discharge Air Temperature Sensor
IndustryHVAC
Number of Zones4
Stages2 Cool/3 Heat
Temperature Rating-40 to 165
Terminal TypePush
VA Rating8.5
Voltage Rating18 to 30
Warranty5 Year
Wire Size18/20
Shipping Dimensions (L x W x H)14" x 8.3" x 2.3"
Additional Information
FCC Class B Part 15
Features & Benefits
- Robust push terminals Variable speed fan control Discharge air temperature staging Advanced dual fuel operation Easy to use checkout mode RedLINK™ enabled for up to 4 wireless zones when used with THM4000R1000 Wireless Adapter and RedLINK™ FocusPRO, VisionPRO or Prestige thermostats Controls up to 3 heat/2 cool conventional or heat pump Controls up to two stages compressor and two stages fossil fuel in dual fuel mode Mounts on wall, stud or return duct
Documents
Marketing Information
This TrueZONE® HZ432 Panel is for use in conventional, heat pump or dual fuel applications. With Intuitive Installer Setup, the easy to follow, digital display uses real language to guide users through four easy steps. It also comes with a Standard Checkout Procedure.
Honeywell TrueZONE® HZ432 Panel, 18 to 30 VAC, Gray, 8 in L x 1.86 in W x 13.42 in H, Import
BrandHoneywell
MFG #HZ432/U
Keller #512615
