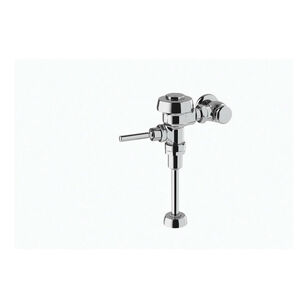

Sloan® Royal® ROYAL 186 3012600 Manual Flushometer, 3/4 in Nominal, IPS, 15 to 80 psi, Brass Body
Sloan® Royal® ROYAL 186 3012600 Manual Flushometer, 3/4 in Nominal, IPS, 15 to 80 psi, Brass Body
Sloan® Manual Flushometer, Model: ROYAL 186, Royal® Collection, IPS Connection, 3/4 in Nominal, 15 to 80 psi Pressure, Media: Water, Handle Actuator, IPS End Connection, 1.5 gpf Flush, Open Handle, Brass Body, Rubber Softgoods, Manual Operator, Wall Mounting, Polished Chrome, Dimensions: 9-3/4 in L x 9-1/8 in W x 4-3/8 in H, Domestic/Import: Domestic, Additional Information: 3/4 in Spud Coupling, 11-1/2 in Rough-In Dimension, Top Spud Fixture Connection
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$295.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSloan®
Actuator TypeHandle
Additional Information3/4 " Spud Coupling, 11-1/2 " Rough-" Dimension, Top Spud Fixture Connection
ApplicationFor wall hung urinals
Body MaterialBrass
CollectionRoyal
Connection TypeIPS
Dimensions9-3/4 " L x 9-1/8 " W x 4-3/8 " H
Domestic/ImportDomestic
End ConnectionIPS
FinishPolished Chrome
Flush Rate1.5
Handle TypeOpen
MediaWater
ModelROYAL 186
Mounting TypeWall
Nominal Size3/4
Operator TypeManual
Pressure Rating15 to 80
Softgoods MaterialRubber
Warranty3 Year Limited
Additional Information
ADA Compliant|ANSI/ASME A112.19.2|ASSE 1037|BAA Compliant|cUPC Certified
Features & Benefits
- High chloramine-resistant PERMEX® synthetic rubber diaphragm with dual-filtered fixed bypass Sweat solder adapter with cover tube and cast wall flange with set screw Non-hold open handle, fixed metering bypass and no external volume adjustment to ensure water conservation Diaphragm, handle packing and vacuum breaker to be molded from PERMEX® rubber compound for chloramine-resistance ADA compliant metal oscillating non-hold open handle Adjustable tailpiece 3/4 in IPS® screwdriver Bak-Chek® angle stop with free spinning vandal-resistant stop cap
Sloan® Royal® ROYAL 186 3012600 Manual Flushometer, 3/4 in Nominal, IPS, 15 to 80 psi, Brass Body
BrandSloan®
MFG #3012600
Keller #51478
