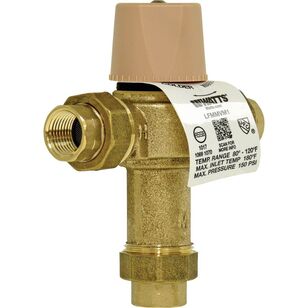

WATTS® 0559119 Mixing Valve, 3/4 in Nominal, FNPT, 150 psi, 200 deg F, Bronze Body
WATTS® 0559119 Mixing Valve, 3/4 in Nominal, FNPT, 150 psi, 200 deg F, Bronze Body
WATTS® Mixing Valve, 3/4 in Nominal, FNPT Connection, 150 psi, 20 gpm at 125 psi Nominal Capacity, Bronze Body, Stainless Steel Disc, 200 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$759.50 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Body MaterialBronze
Connection TypeFNPT
Disc MaterialStainless Steel
IndustryPlumbing
Nominal Capacity20 gpm at 125 psi
Nominal Size3/4
Pressure Rating150
Temperature Rating200
Shipping Dimensions (L x W x H)6.313" x 4.5" x 2.63"
Additional Information
Buy American Act Compliant|ASSE 1070|ASSE 1069|ASSE 1017|UPC Certified|cCSAus Certified|NSF Approved
Features & Benefits
- Thermal actuation technology for precise temperature control Locking mechanism secures temperature setting Lead-free brass construction
Documents
Marketing Information
This 3/4 in lead-free thermostatic mixing valve is designed for residential, commercial or institutional environments for supplying baths or lavatories with tempered water. The double throttling design controls both hot and cold water supply to the mixed outlet. It consists of a lead-free brass body, threaded union connections, solid wax hydraulic principle thermostat, integral filter washers and check valves with a locking mechanism for the temperature setting. The adjustable field range temperature at mixed outlet is 80 to 120 deg F (27 to 49 deg C). The maximum pressure rating is 150 psi (10.3 bar).
WATTS® 0559119 Mixing Valve, 3/4 in Nominal, FNPT, 150 psi, 200 deg F, Bronze Body
BrandWATTS®
MFG #0559119
Keller #517232
