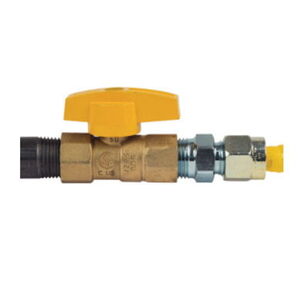

BrassCraft® TBV Series TBV8 Ball Valve, 1/2 in, FIP, Brass, 5 psi
BrassCraft® TBV Series TBV8 Ball Valve, 1/2 in, FIP, Brass, 5 psi
BrassCraft® Ball Valve, TBV Series, 1/2 in Nominal, FIP Connection, 5 psi, Gas Media, 1.94 in Inlet to Outlet Length, 1.43 in Top to Inlet Center, Handle Operator, Brass Body, PTFE Seat, Brass Stem, Brass/PTFE Trim, Aluminum Handle, Brass Ball, PTFE Softgoods, -40 to 150 deg F, 1.94 in L, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$20.09 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandBrassCraft®
ApplicationFor indoor and outdoor applications
Ball MaterialBrass
Body MaterialBrass
Connection TypeFIP
Dimensions1.94 " L
Domestic/ImportDomestic
Handle MaterialAluminum
Inlet to Outlet Length1.94
MediaGas
Nominal Size1/2
Operator TypeHandle
Pressure Rating5
Seat MaterialPTFE
SeriesTBV Series
Softgoods MaterialPTFE
Stem MaterialBrass
Temperature Rating-40 to 150
Top to Inlet Center1.43
Trim MaterialBrass/PTFE
Additional Information
ANSI Z21.15|ANSI/ASME B16.44|CGA CR91-002|CSA 9.1
Features & Benefits
- Forged brass body eliminates pin hole leaks commonly associated with cast products Connects to 1/2 in MIP gas pipe or fittings For use in gas appliance installations Use with natural, manufactured, mixed and liquefied petroleum (LP or propane) gases and LP gas-air mixtures PTFE seats assure a tight seal and easy-on and off operation even after long periods of inactivity
Marketing Information
BrassCraft® exclusive line of Italian made gas ball valves are specially engineered to provide unsurpassed product performance. From the stem to the body to the exclusive handle design, every detail has been master crafted for ease of operation and installation. This valve can be installed in the gas line pipe by pipe run or at the gas pipe stub out at appliance to regulate gas flow.
