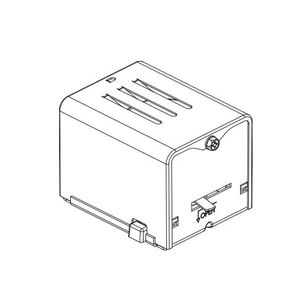

Schneider Electric TAC Erie™ AHxx Series AH13B02A Spring Return Actuator
Schneider Electric TAC Erie™ AHxx Series AH13B02A Spring Return Actuator
Schneider Electric TAC Erie™ Spring Return Actuator, AHxx Series, Number of Ways/Position: 2-Position, 120 V, 50/60 Hz, VA Rating: 7.5 VA, 6.5 W, 18 in Lead Electrical Connection, 32 to 200 deg F, Additional Information: 13 to 18 s Power (Open/Close), 4 to 5 s Spring Return (Open/Close), Normally Closed, Hysteresis Synchronous Motor Type, 5 to 95% RH Non-Condensing Humidity
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$156.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSchneider Electric
Additional Information13 to 18 s Power (Open/Close), 4 to 5 s Spring Return (Open/Close), Normally Closed, Hysteresis Synchronous Motor Type, 5 to 95% RH Non-Condensing Humidity
Electrical Connection18 " Lead
Frequency Rating50/60
IndustryPlumbing
Number of Ways/Position2-Position
Power Rating6.5
SeriesAHxx Series
Temperature Rating32 to 200
VA Rating7.5
Voltage Rating120
Additional Information
13 to 18 s Power (Open/Close), 4 to 5 s Spring Return (Open/Close), Normally Closed, Hysteresis Synchronous Motor Type, 5 to 95% RH Non-Condensing Humidity
Features & Benefits
- Synchronous motor drive with spring return Mounts directly onto the body without the need for linkages or calibration Manual override lever on normally closed actuators
Documents
Marketing Information
The PopTop™ series valve bodies and actuators provide easy installation for a variety of heating and cooling applications. The valve's actuator can be installed after the valve body has been installed onto the fan coil, baseboard or air handler.
Schneider Electric TAC Erie™ AHxx Series AH13B02A Spring Return Actuator
BrandSchneider Electric
MFG #AH13B02A
Keller #519618
My Part ##
Last Ordered#
$156.00 / ea
