VICF V060717PE2 6 CKV 717R E UL/FM/ULC W/2 DRAIN AND 1/4 NPT C060141101 UPSTREAM/DOWNSTREAM TAPS BLK
VICF V060717PE2 6 CKV 717R E UL/FM/ULC W/2 DRAIN AND 1/4 NPT C060141101 UPSTREAM/DOWNSTREAM TAPS BLK

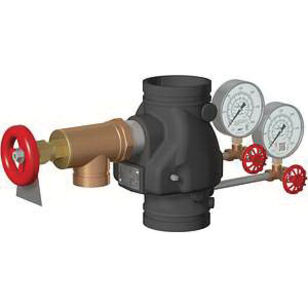

Victaulic® FIRELOCK™ Riser Check Valve With Riser Check Kit, 717R Series, 6 in Nominal, Grooved Connection, 365 psi, Water Media, 11-1/2 in Inlet to Outlet Length, 5.38 in Top to Inlet Center, Material Standard: ASTM A536 Grade 65-45-12, Ductile Iron Body, Ductile Iron Seat, EPDM Seal, Ductile Iron Disc, Ductile Iron Trim, EPDM Softgoods, Finish: Black Polymeric-Coated, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,873.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandVictaulic®
Body MaterialDuctile Iron
Connection TypeGrooved
Disc MaterialDuctile Iron
Domestic/ImportDomestic
FinishBlack Polymeric-Coated
Inlet to Outlet Length11-1/2
Material StandardASTM A536 Grade 65-45-12
MediaWater
Nominal Size6
Pressure Rating365
Seal MaterialEPDM
Seat MaterialDuctile Iron
Series717R Series
Softgoods MaterialEPDM
Top to Inlet Center5.38
Trim MaterialDuctile Iron
Additional Information
CCC Marked|CE Marked|cULus Listed|FM Approved|LPCB Listed|VDS Approved|UKCA Approved
Features & Benefits
- Features an elastomer encapsulated disc with an electroless nickel-plated seat Includes upstream and downstream pressure taps, must specify riser check kit when ordered Prevents backflow Single disc mechanism incorporates a spring-assisted feature for non-slamming operation Can be installed either vertically (flow upwards only) or horizontally Valve body cast with arrow indicator to assist with proper valve orientation
