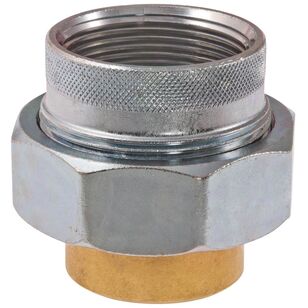

WATTS® LF301 Series 0009893 Dielectric Union, 1-1/4 in FNPT x 1-1/4 in Solder, Steel
WATTS® LF301 Series 0009893 Dielectric Union, 1-1/4 in FNPT x 1-1/4 in Solder, Steel
WATTS® Dielectric Union, LF301 Series, Union Fitting, 1-1/4 in Connection Size 1, Connection Type 1: FNPT, 1-1/4 in Connection Size 2, Connection Type 2: Solder, FNPT|Solder Connection, Steel, Material Construction: Steel, 2-9/16 in Hex, 2-7/16 in L, 250 psi, 250 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$96.50 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Connection Size 11-1/4
Connection Size 21-1/4
Connection TypeFNPT|Solder
Connection Type 1FNPT
Connection Type 2Solder
Dimensions2-7/16 " L
Fitting TypeUnion
Hex Size2-9/16
IndustryPlumbing
MaterialSteel
Material ConstructionSteel
Pressure Rating250
SeriesLF301 Series
Temperature Rating250
Shipping Dimensions (L x W x H)2.56" x 2.56" x 2.45"
Additional Information
ANSI B 16.18|ANSI B.1.20.1
Features & Benefits
- Designed and manufactured to the highest quality standards
Marketing Information
This 1-1/4 in lead-free dielectric union is used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals and is used on applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas and water piping. It consists of a female iron pipe thread to solder connection, union nut, two tailpieces and a Buna-N gasket that separates the tailpieces to prevent an electric current from occurring.
WATTS® LF301 Series 0009893 Dielectric Union, 1-1/4 in FNPT x 1-1/4 in Solder, Steel
BrandWATTS®
MFG #0009893
Keller #526335
