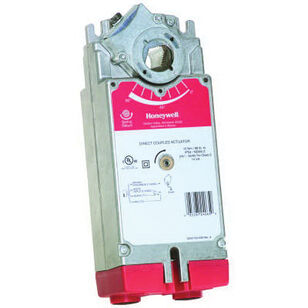

Honeywell MS7510A2008/U Valve Actuator
Honeywell MS7510A2008/U Valve Actuator
Honeywell Valve Actuator, 24 VAC/VDC, 50/60 Hz, VA Rating: 14 VA, SPDT, Enclosed Screw Terminal Strip (22 - 14 AWG) Electrical Connection, 90 s Timing, 88 in-lb Torque, 95 kOhm Input, 40 dBA Noise Level, NEMA 2, IP54 Enclosure, -40 to 140 deg F, 9.72 in H x 3.94 in W x 2.95 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$610.54Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHoneywell
ConfigurationSPDT
Dimensions9.72 " H x 3.94 " W x 2.95 " D
Electrical ConnectionEnclosed Screw Terminal Strip (22 - 14 AWG)
Enclosure TypeNEMA 2, IP54
Frequency Rating50/60
Input Impedance95
Noise Level40
Temperature Rating-40 to 140
Timing Range90
Torque Rating88
VA Rating14
Voltage Rating24
Additional Information
UL873|Plenum Rated|CE 89/336|ECC 73/23/EEC|cUL C22.2 24-93|C-Tick N314
Features & Benefits
- Integral 1/2 in NPSM conduit connection 3/8 to 1.06 in round or 3/8 to 11/16 in square shaft dimensions Damper, valve actuator SW2-US external auxiliary switch Rotation to open by switch Rotational stroke adjustment mechanically limited 5 deg increments 20 s maximum spring return timing 2 to 10 VDC (maximum output +/- 1 mA) feedback Self-centering clamping shaft adapter Manual crank manual operation Spring return direction by orientation Floating control signal IP54 environmental, electrical or ingress protection rating
Honeywell MS7510A2008/U Valve Actuator
BrandHoneywell
MFG #MS7510A2008/U
Keller #526875
