VICF V040771R01 4 GATE VLV 771H OS&Y WITH HW RESILIENT WEDGE ORG UL/FM
VICF V040771R01 4 GATE VLV 771H OS&Y WITH HW RESILIENT WEDGE ORG UL/FM

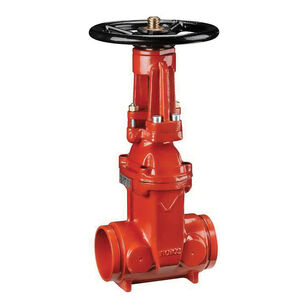

Victaulic® Gate Valve, 771H Series, 4 in Nominal, Grooved Connection, 250 psi, Pressure Class: 150 lb, 9.016 in Inlet to Outlet Length, 18.11 in Top to Inlet Center, Handwheel Operator, Material Standard: ASTM A536 Grade 65-45-12, ASTM B62, ASTM B16, Iron Body, Brass Stem, EPDM Seal, Brass Trim, EPDM Softgoods, Finish: Epoxy-Coated
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,648.50 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandVictaulic®
Body MaterialIron
Connection TypeGrooved
FinishEpoxy-Coated
Inlet to Outlet Length9.016
Material StandardASTM A536 Grade 65-45-12, ASTM B62, ASTM B16
Nominal Size4
Operator TypeHandwheel
Pressure Class150
Pressure Rating250
Seal MaterialEPDM
Series771H Series
Softgoods MaterialEPDM
Stem MaterialBrass
Top to Inlet Center18.11
Trim MaterialBrass
Additional Information
cULus Listed|FM Approved
Features & Benefits
- Used when positive shut-off is required in a fire line and a quick visual indicator of open/closed position is needed
Documents
VICF V040771R01 4 GATE VLV 771H OS&Y WITH HW RESILIENT WEDGE ORG UL/FM
BrandVictaulic®
MFG #V040771R01
Keller #530304
