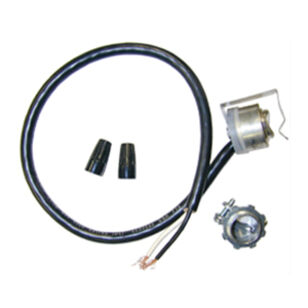

Bell & Gossett AQ-3/4 Series 113224 Aquastat, Epoxy, 100 to 120 deg F
Bell & Gossett AQ-3/4 Series 113224 Aquastat, Epoxy, 100 to 120 deg F
Bell & Gossett Aquastat, Series: AQ-3/4, Amperage Rating: 16 A, Voltage Rating: 115 to 120 V, Frequency Rating: 60 Hz, Sensing Element: Bi-Metal, Size: 3/8 in, Finish: Epoxy, Temperature Rating: 100 to 120 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$96.80Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandBell & Gossett
Amperage Rating16
FinishEpoxy
Frequency Rating60
Sensing ElementBi-Metal
SeriesAQ-3/4
Size3/8
Temperature Rating100 to 120
Voltage Rating115 to 120
Additional Information
UL Listed
Features & Benefits
- Thermostatic switch modes - off (open) at 120 deg F water temperature and on (closed) at 100 deg F water temperature Thermostatic element - bi-metal, senses surface temperature of outside diameter of pipe AQS-3/4 clips onto 3/4 in copper pipe or 1/2 in steel pipe (OD of pipe 7/8 in) Mounting - may be installed to sense temperature at the suction or discharge pipe of the pump Connects to the lead wires in the connection box of any Bell & Gossett NBF/NRF/SSF circulator Insulated 18 in 18 AWG wire leads
Marketing Information
Aquastat® is designed to thermostatically turn any B&G NBF circulator on and off. The AQ-1/2 or AQ-3/4 will switch the pump off at 120 deg F and on at 100 deg F. The Aquastat® are available in separate models that will sense the temperature for either 1/2 in or 3/4 in copper pipe.
Bell & Gossett AQ-3/4 Series 113224 Aquastat, Epoxy, 100 to 120 deg F
BrandBell & Gossett
MFG #113224
Keller #53119
