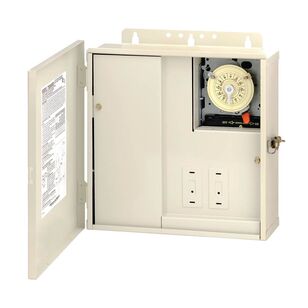

Control Panel with 300 W Transformer and T104M Mechanism
Control Panel with 300 W Transformer and T104M Mechanism
These mechanical control systems include built-in transformers for ease of installation.
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandIntermatic®
Depth4.75"
Height12.88"
IndustryLeisure
ItemEnclosureType_enOutdoor type 3R plastic
ItemInductiveLoadRatings_en30 A, 120 VAC, 60 Hz, 30 A, 208 VAC, 60 Hz, 30 A, 240 VAC, 60 Hz
ItemInductiveLoadRatingsRanges_en30 A, 120-240 VAC, 60 Hz
ItemInputVoltageRanges_en120-240 VAC, 60 Hz single-phase
ItemKnockoutDimensionsBack_en(1) 0.875 " - 1.125 ", (1) 1.125 " - 1.375 "
ItemKnockoutDimensionsBottom_en(5) 0.875 " - 1.875 ", (2) 0.875 ", (2) 1.125 " - 1.375 "
ItemKnockoutDimensionsLeft_en(1) 0.875 " - 1.125 "
ItemKnockoutDimensionsRight_en(1) 1.75 " x 2.75 "
ItemMarket_enResidential, Commercial
ItemMechanismSupplyVoltage_en240 VAC, 60 Hz
ItemMotorLoadRatingsRanges_en2 HP, 24 FLA at 120 VAC, 60 Hz, 5 HP, 28 FLA at 240 VAC, 60 Hz
ItemNumberOfCircuits_en1
ItemNumberOfReceptacleSwitchKnockouts2
ItemOperatingTemperatureMaxC54
ItemOperatingTemperatureMaxF130
ItemOperatingTemperatureMinC-40
ItemOperatingTemperatureMinF-40
ItemPilotDutyLoadRatings_en1000 VA, 120 VAC, 60 Hz, 1000 VA, 208 VAC, 60 Hz, 1000 VA, 240 VAC, 60 Hz
ItemPilotDutyLoadRatingsRanges_en1000 VA, 120-240 VAC, 60 Hz
ItemPowerCenterRatings_en62 A per leg, 109 A Max, 120 VAC, 60 Hz, 62 A per leg, 109 A Max , 208 VAC, 60 Hz, 62 A per leg, 109 A Max , 240 VAC, 60 Hz, Single Phase
ItemPowerCenterRatingsDisplay_en62 A per leg, 109 A MAX, 120-240 VAC,60 Hz, Single-Phase
ItemPowerConsumptionMaxW_en3 W
ItemProductDepthIn4.75
ItemProductDepthMm120.7
ItemProductHeightIn12.875
ItemProductHeightMm327
ItemProductWidthIn12.875
ItemProductWidthMm327
ItemResistiveLoadRatings_en30 A, 120 VAC, 60 Hz, 30 A, 208 VAC, 60 Hz, 30 A, 240 VAC, 60 Hz
ItemResistiveLoadRatingsRanges_en30 A, 120-240 VAC, 60 Hz
ItemSwitchType_enDPST
ItemTransformerInputVoltage_en3 A, 120 VAC, 60 Hz
ItemTransformerOutputVoltage_en12, 13, 14 VAC
ItemTransformerW300
ItemTungstenLoadRatings_en30 A, 120 VAC, 60 Hz, 30 A, 208 VAC, 60 Hz, 30 A, 240 VAC, 60 Hz
ItemTungstenLoadRatingsRanges_en30 A, 120-240 VAC, 60 Hz
ModelItt-t10004rt3
Width12.88"
Shipping Dimensions (L x W x H)12" x 12" x 5.75"
Additional Information
cCSAus
Features & Benefits
- All-in-one control power for pool/spa installation Easy to wire Can house additional Intermatic mechanisms and components Control two-speed pumps with the T40604RT3 Heavy-duty Type 3R metal indoor/outdoor power and load center Wiring devices may be installed in these Load Centers with the use of Standoffs, sold separately Knockout on the side for additional wiring device
Documents
Marketing Information
These mechanical control systems include built-in transformers for ease of installation.
Control Panel with 300 W Transformer and T104M Mechanism
BrandIntermatic®
MFG #T10004RT3
