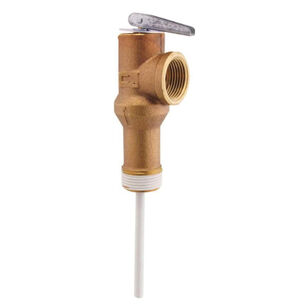

Rheem® SP8346 Temperature and Pressure Relief Valve, 3/4 in Nominal, NPT, 150 psi, 210 deg F
Rheem® SP8346 Temperature and Pressure Relief Valve, 3/4 in Nominal, NPT, 150 psi, 210 deg F
Rheem® Temperature and Pressure Relief Valve, 3/4 in Nominal, NPT Connection, 150 psi, 210 deg F, 7-1/4 in L
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$67.06 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRheem®
Connection TypeNPT
Dimensions7-1/4 " L
IndustryPlumbing
Nominal Size3/4
Pressure Rating150
Temperature Rating210
Additional Information
ASME Specified|CSA Certified
Features & Benefits
- Safety device that allows water to escape from the tank in the unlikely event that the temperature or pressure becomes excessive Long shank up to 100000 Btu/hr 3 in L sensor 105000 Btu/hr nominal capacity For power vent FVIR models, direct vent non-FVIR models heating systems
Marketing Information
The temperature and pressure relief valve is designed to protect water heaters from overheating and over-pressurization. It is a component that is integral to the safe operation of the water heater. The valve features a bronze body with 3/4 in MNPT inlet and 3/4 in FNPT outlet connections, unique thermostat with special thermo-bonded coating and a test lever. Temperature relief - 210 deg F (99 deg C), pressure relief range - 75 to 150 psi (5.2 to 10.3 bar).
Rheem® SP8346 Temperature and Pressure Relief Valve, 3/4 in Nominal, NPT, 150 psi, 210 deg F
BrandRheem®
MFG #SP8346
Keller #533169
