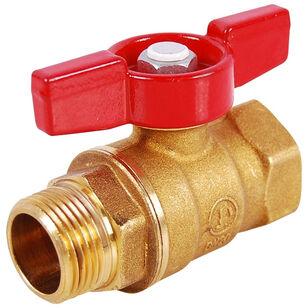

Legend Valve 101-534 Ball Valve, 3/4 in, MNPT x FNPT, Brass, 150 psi WSP, 600 psi CWP
Legend Valve 101-534 Ball Valve, 3/4 in, MNPT x FNPT, Brass, 150 psi WSP, 600 psi CWP
Legend Valve Ball Valve, 3/4 in Nominal, MNPT x FNPT Connection, Large Port, 150 psi WSP, 600 psi CWP, Air, LPG Media, 2.87 in Inlet to Outlet Length, 1.62 in Top to Inlet Center, T-Handle Operator, 21.37 Cv Flow Coefficient (Cv), Material Standard: ASTM B124 C37700, Brass Body, PTFE Seat, Brass Stem, Steel Handle, Brass Ball, PTFE Softgoods, 2.4 in H x 3.1 in W, Additional Information: Model T-900T
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$46.17Â /Â ea
In Stock
- Attributes
- Additional Information
- Documents
- Marketing Information
Attributes
BrandLegend Valve
Additional InformationModel T-900T
Ball MaterialBrass
Body MaterialBrass
Connection TypeMNPT x FNPT
Dimensions2.4 " H x 3.1 " W
Flow Coefficient (Cv)21.37
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length2.87
Material StandardASTM B124 C37700
MediaAir, LPG
Nominal Size3/4
Operator TypeT-Handle
Port TypeLarge
Pressure Rating150 psi WSP, 600 psi CWP
Seat MaterialPTFE
Softgoods MaterialPTFE
Stem MaterialBrass
Top to Inlet Center1.62
Shipping Dimensions (L x W x H)10" x 8.3" x 15.6"
Additional Information
ANSI/ASME B1.20.1|ASME B16.44|CSA Certified|UL 757X
Documents
Marketing Information
Space-saving male-by-female end connections are ideal for confined piping installations T-handle equipped models can be used as gauge-cock isolation valves, without the gauge face obstruction associated with a lever-handle equipped valve bottom loaded blowout-proof stem is a maintenance-free, dual O-ring seal design, eliminating the need to tighten a packing nut Improved 3M Dyneon TFM PTFE seats and thrust washers provide enhanced sealing and isolation between the body and ball-stem-handle rotating assembly.
Legend Valve 101-534 Ball Valve, 3/4 in, MNPT x FNPT, Brass, 150 psi WSP, 600 psi CWP
BrandLegend Valve
MFG #101-534
