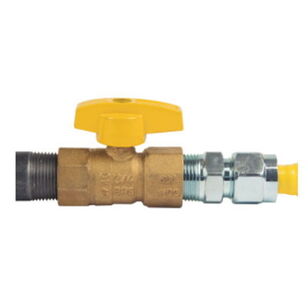

BrassCraft® TBV Series TBV12 Ball Valve, 3/4 in, FIP, Brass, 5 psi
BrassCraft® TBV Series TBV12 Ball Valve, 3/4 in, FIP, Brass, 5 psi
BrassCraft® Ball Valve, TBV Series, 3/4 in Nominal, FIP Connection, 5 psi, Gas Media, 2.33 in Inlet to Outlet Length, 1.68 in Top to Inlet Center, Handle Operator, Brass Body, PTFE Seat, Brass Stem, Brass/PTFE Trim, Aluminum Handle, Brass Ball, PTFE Softgoods, -40 to 150 deg F, 2.33 in L, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$29.21 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandBrassCraft®
ApplicationFor indoor and outdoor applications
Ball MaterialBrass
Body MaterialBrass
Connection TypeFIP
Dimensions2.33 " L
Domestic/ImportDomestic
Handle MaterialAluminum
IndustryPlumbing
Inlet to Outlet Length2.33
MediaGas
Nominal Size3/4
Operator TypeHandle
Pressure Rating5
Seat MaterialPTFE
SeriesTBV Series
Softgoods MaterialPTFE
Stem MaterialBrass
Temperature Rating-40 to 150
Top to Inlet Center1.68
Trim MaterialBrass/PTFE
Additional Information
ANSI Z21.15|ANSI/ASME B16.44|CGA CR91-002|CSA 9.1
Features & Benefits
- Forged brass body eliminates pin hole leaks commonly associated with cast products Connects to 3/4 in MIP gas pipe or fittings Use with natural, manufactured, mixed and liquefied petroleum (LP or propane) gases and LP gas-air mixtures Blowout-proof stem assembled from the inside with double O-ring to ensure safe, reliable performance PTFE seats assure a tight seal and easy-on and off operation even after long periods of inactivity Comfort fit grip handle features an exclusive integration of the 'T' and lever handle designs 1/4-turn operation provides easy-on and off flow control 100% leak tested to ensure reliable, leak-free performance
Marketing Information
BrassCraft® exclusive line of Italian made gas ball valves are specially engineered to provide unsurpassed product performance. From the stem to the body to the exclusive handle design, every detail has been master crafted for ease of operation and installation. This valve can be installed in the gas line run or at the appliance to regulate gas flow.
