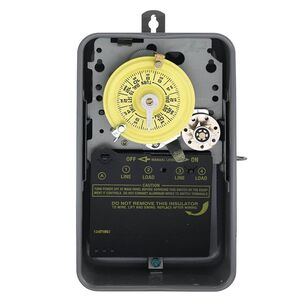

24-Hour Mechanical Time Switch with Skip-a-Day, 208-277 VAC, 60Hz, DPST, Outdoor Metal Enclosure, 1 Hour Interval
24-Hour Mechanical Time Switch with Skip-a-Day, 208-277 VAC, 60Hz, DPST, Outdoor Metal Enclosure, 1 Hour Interval
Similar to the T100 Series, these time switches can also handle electrical loads up to 40 A per pole. The T170 Series Time Switches allow for up to 10 ON/OFF settings per day, but give you the additional capability of skipping days in which the loads may not be needed. Each time switch will come with one set of ON/OFF trippers as well as three skipper screws to omit the schedule for at least three days.
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandIntermatic®
Depth3.63"
Height10.13"
IndustryLeisure
ItemApplicationCompatibilities_enLED, HID
ItemCSACertificationFileNumberC22.2-177, LR3730
ItemElectronicBallastLoadRatings_en16 A, 277 VAC, 60 Hz
ItemElectronicBallastLoadRatingsRanges_en16 A, 277 VAC, 60 Hz
ItemEnclosureType_enOutdoor type 3R metal
ItemHasManualOverrideCVL_enYes
ItemInductiveLoadRatings_en40 A, 277 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 120 VAC, 60 Hz
ItemInductiveLoadRatingsRanges_en40 A, 120-277 VAC, 60 Hz
ItemInputVoltageRanges_en208-277 VAC, 60 Hz
ItemMarket_enCommercial, Industrial
ItemMaximumOnOffOperations_en10
ItemMinimumOnOffTime_en1 hr
ItemMotorLoadRatingsRanges_en2 HP, 24 FLA at 120 VAC, 60 Hz, 5 HP, 28 FLA at 240 VAC, 60 Hz
ItemNumberOfCircuits_en1
ItemOperatingTemperatureMaxC54
ItemOperatingTemperatureMaxF130
ItemOperatingTemperatureMinC-40
ItemOperatingTemperatureMinF-40
ItemOperationMode_en24 hr
ItemPilotDutyLoadRatings_en1000 VA, 120 VAC, 60 Hz, 1000 VA, 208 VAC, 60 Hz, 1000 VA, 240 VAC, 60 Hz, 1000 VA, 277 VAC, 60 Hz
ItemPilotDutyLoadRatingsRanges_en1000 VA, 120-277 VAC, 60 Hz
ItemPowerConsumptionMaxW_en3 W
ItemProductDepthIn3.625
ItemProductDepthMm92.1
ItemProductHeightIn10.125
ItemProductHeightMm257.2
ItemProductWidthIn6.5
ItemProductWidthMm165.1
ItemResistiveLoadRatings_en40 A, 480 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 120 VAC, 60 Hz
ItemResistiveLoadRatingsRanges_en40 A, 120-480 VAC, 60 Hz
ItemSkipperWheelOperationMode_enNot Included
ItemSwitchType_enDPST
ItemTungstenLoadRatings_en40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz
ItemTungstenLoadRatingsRanges_en40 A, 120-277 VAC, 60 Hz
ItemULCerficationFileNumberUL916
ItemWireSizeMax_enNo. 8 AWG
ItemWireSizeMin_enNo. 14 AWG
ItemWiringOption_enTerminals
ModelItt-t174r
Width6.5"
Shipping Dimensions (L x W x H)11.5" x 7.06" x 4"
Additional Information
LED|cULus|cCSAus
Features & Benefits
- Controls loads up to 40 A per pole Direct 24-hour control of most loads Up to 10 ON/OFF operations each day Minimum ON/OFF times of one hour Manual override One ON and one OFF tripper and three day-skipper screws included
Documents
Marketing Information
Similar to the T100 Series, these time switches can also handle electrical loads up to 40 A per pole. The T170 Series Time Switches allow for up to 10 ON/OFF settings per day, but give you the additional capability of skipping days in which the loads may not be needed. Each time switch will come with one set of ON/OFF trippers as well as three skipper screws to omit the schedule for at least three days.
24-Hour Mechanical Time Switch with Skip-a-Day, 208-277 VAC, 60Hz, DPST, Outdoor Metal Enclosure, 1 Hour Interval
BrandIntermatic®
MFG #T174R
Keller #538802
