VIC V060726P0A 6 BLV 726 STD TRM 2 POS HDL B060816616 W L/D
VIC V060726P0A 6 BLV 726 STD TRM 2 POS HDL B060816616 W L/D

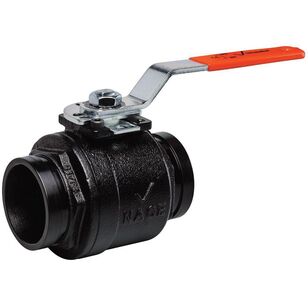

Victaulic® High Pressure Ball Valve, 726 Series, 6 in Nominal, Grooved Connection, Standard Port, 800 psi, Water Media, 10.1 in Inlet to Outlet Length, 6.88 in Top to Inlet Center, 4 in Opening, Handle Operator, 800 Cv Flow Coefficient (Cv), Material Standard: ASTM A395, Ductile Iron Body, PTFE Seat, Carbon Steel Stem, Fluoroelastomer Seal, Carbon Steel Trim, Carbon Steel Ball, 20 to 250 deg F, 6-5/8 in OD
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$15,175.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandVictaulic®
Ball MaterialCarbon Steel
Body MaterialDuctile Iron
Connection TypeGrooved
Dimensions6-5/8 " OD
Flow Coefficient (Cv)800
IndustryPlumbing
Inlet to Outlet Length10.1
Material StandardASTM A395
MediaWater
Nominal Size6
Opening Size4
Operator TypeHandle
Port TypeStandard
Pressure Rating800
Seal MaterialFluoroelastomer
Seat MaterialPTFE
Series726 Series
Stem MaterialCarbon Steel
Temperature Rating20 to 250
Top to Inlet Center6.88
Trim MaterialCarbon Steel
Additional Information
ASME A17.1-2007/CSA B44-07|CE Marked|NACE Compliant|UKCA Certified
Features & Benefits
- Two-piece, end entry valve featuring a floating ball design Intended for use in full open or shut-off service, throttling is not recommended with standard ball valves
VIC V060726P0A 6 BLV 726 STD TRM 2 POS HDL B060816616 W L/D
BrandVictaulic®
MFG #V060726P0A
Keller #539140
My Part ##
Last Ordered#
$15,175.00 / ea
