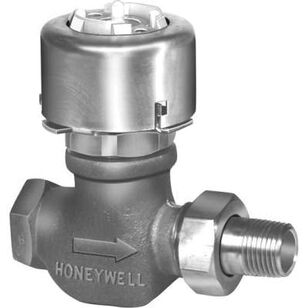

Honeywell VP525C1032/U Pneumatic Radiator Valve, 3/4 in Nominal, MNPT Union, Configuration: NO
Honeywell VP525C1032/U Pneumatic Radiator Valve, 3/4 in Nominal, MNPT Union, Configuration: NO
Honeywell Pneumatic Radiator Valve, 3/4 in Nominal, MNPT Union Connection, NO, 150 lb/sq-in Body, 30 lb/sq-in Safe Air Pressure, 2 Positions, 40-240 deg F, -230 deg F Safe Actuator Diaphragm, 4-7/8 in H x 3-3/4 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$586.57Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandHoneywell
ConfigurationNO
Connection TypeMNPT Union
Dimensions4-7/8 " H x 3-3/4 " W
IndustryHVAC
Nominal Size3/4
Number of Positions2
Pressure Rating150 lb/sq-" Body, 30 lb/sq-" Safe Air Pressure
Temperature Rating40-240 deg F, -230 deg F Safe Actuator Diaphragm
Features & Benefits
- Normally-open, single-seated pneumatic radiator valve, with straight through or angle body construction provides proportional control of two-pipe, hot water or steam systems Easily replaceable actuator assembly for convenience of service Compact size for installation where space is limited Can be repacked without shutting down system Replacement for VP525A1192 and VP525A1200 5 to 95% RH operating humidity range 3-10 lb/sq-in spring range Push on for 1/4 in OD plastic tubing air connections Proportional normally open valve action Water, steam controlled fluid 42 lb/sq-in differential at 20 lb/sq-in close-off ratings at branch line pressure
Honeywell VP525C1032/U Pneumatic Radiator Valve, 3/4 in Nominal, MNPT Union, Configuration: NO
BrandHoneywell
MFG #VP525C1032/U
Keller #540556
