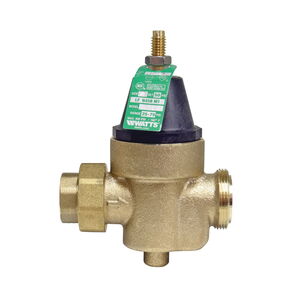

WATTS® LFN45B Series 0009478 Water Pressure Reducing Valve, 3/4 in Nominal, FNPT x FNPT, 25 to 75 psi, 400 psi
WATTS® LFN45B Series 0009478 Water Pressure Reducing Valve, 3/4 in Nominal, FNPT x FNPT, 25 to 75 psi, 400 psi
WATTS® Water Pressure Reducing Valve, LFN45B Series, 3/4 in Nominal, FNPT x FNPT Connection, 25 to 75 psi, 400 psi, Water Media, 119 mm Inlet to Outlet Length, 116 mm Top to Inlet Center, Copper Silicon Body, Thermoplastic Seat, EPDM Disc, 33 to 180 deg F, 2-1/4 in W, Domestic/Import: Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$394.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
ApplicationFor new residential construction applications
Body MaterialCopper Silicon
Connection TypeFNPT x FNPT
Dimensions2-1/4 " W
Disc MaterialEPDM
Domestic/ImportImport
Inlet to Outlet Length119
MediaWater
Nominal Size3/4
Pressure Rating25 to 75 psi, 400 psi
Seat MaterialThermoplastic
SeriesLFN45B Series
Temperature Rating33 to 180
Top to Inlet Center116
Additional Information
ANSI A112.26.2|ASSE 1003|CSA B356|IAPMO Approved|NSF/ANSI 61 Annex G
Features & Benefits
- Integral stainless steel strainer removable for cleaning Serviceable in line Sealed spring cage for accessible outdoor or waterworks pit installations Thermoplastic seat and cage
Marketing Information
This 3/4 in water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a lead-free brass body construction, NPT threaded union inlet and FNPT outlet connection, stainless steel integral strainer, thermoplastic seat module, thermal expansion bypass and a sealed spring cage for waterworks pit installations. The temperature range is 33 to 180 deg F. Suitable for up to 400 psi, the pressure range can be adjusted from 25 to 75 psi with the standard setting at 50 psi.
WATTS® LFN45B Series 0009478 Water Pressure Reducing Valve, 3/4 in Nominal, FNPT x FNPT, 25 to 75 psi, 400 psi
BrandWATTS®
MFG #0009478
Keller #540766
My Part ##
Last Ordered#
$394.00 / ea
