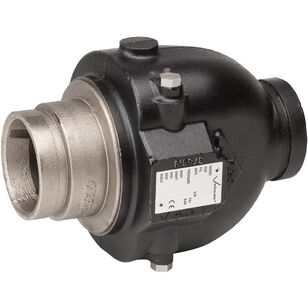

VICF V024717PH0 2 1/2 717H FIRELOCK CHECK VALVE W/1/2 NPT V024717PH0 TAPS
VICF V024717PH0 2 1/2 717H FIRELOCK CHECK VALVE W/1/2 NPT V024717PH0 TAPS
Victaulic® High Pressure Check Valve, 717H Series, 2-1/2 in Nominal, Grooved Connection, 365 psi, Water Media, 9.37 in Inlet to Outlet Length, 3.31 in Top to Inlet Center, 215 Cv Flow Coefficient (Cv), Material Standard: ASTM A536 Grade 65-45-12, Ductile Iron Body, Nitrile Seat, Nitrile Seal, Stainless Steel Disc, Nitrile/Stainless Steel Trim, Nitrile Softgoods, Finish: Black Painted, 4.26 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$890.50 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandVictaulic®
ApplicationFor fire protection systems
Body MaterialDuctile Iron
Connection TypeGrooved
Dimensions4.26 " W
Disc MaterialStainless Steel
FinishBlack Painted
Flow Coefficient (Cv)215
Inlet to Outlet Length9.37
Material StandardASTM A536 Grade 65-45-12
MediaWater
Nominal Size2-1/2
Pressure Rating365
Seal MaterialNitrile
Seat MaterialNitrile
Series717H Series
Softgoods MaterialNitrile
Top to Inlet Center3.31
Trim MaterialNitrile/Stainless Steel
Warranty1 Year
Additional Information
CCC Marked|CE Marked|cULus Listed|FM Approved|LPCB Listed|VDS Approved|UKCA Approved
Features & Benefits
- Features a stainless steel disc which seats against the O-ring seal, when mounted on the electroless nickel-plated face Prevents backflow Single disc mechanism incorporates a spring-assisted feature for non-slamming operation Can be installed either vertically (flow upwards only) or horizontally Valve body cast with arrow indicator to assist with proper valve orientation Rated for ambient temperature use in fire protection systems
VICF V024717PH0 2 1/2 717H FIRELOCK CHECK VALVE W/1/2 NPT V024717PH0 TAPS
BrandVictaulic®
MFG #V024717PH0
Keller #541931
My Part ##
Last Ordered#
$890.50 / ea
