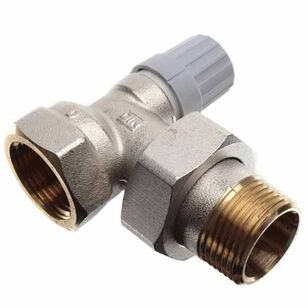

Danfoss RA 2000 Series 013G8024 Thermostatic Radiator Angle Valve, 1 in, FPT x MPT Union Tailpiece, Brass, Nickel-Plated
Danfoss RA 2000 Series 013G8024 Thermostatic Radiator Angle Valve, 1 in, FPT x MPT Union Tailpiece, Brass, Nickel-Plated
Danfoss Thermostatic Radiator Angle Valve, RA 2000 Series, 1 in Nominal, FPT x MPT Union Tailpiece Connection, 10 lbf/sq-in Working, 145 lbf/sq-in Static, 15 lbf/sq-in Stem, 232 lbf/sq-in Test, 2.8 Cv Flow Coefficient (Cv), Brass, Finish: Nickel-Plated, Hot Water, Steam Service, 250 deg F Maximum, 45 - 86 deg F Adjustable
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$157.43Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandDanfoss
Connection TypeFPT x MPT Union Tailpiece
FinishNickel-Plated
Flow Coefficient (Cv)2.8
IndustryHydronics
MaterialBrass
Nominal Size1
Pressure Rating10 lbf/sq-" Working, 145 lbf/sq-" Static, 15 lbf/sq-" Stem, 232 lbf/sq-" Test
SeriesRA 2000 Series
Service TypeHot Water, Steam
Temperature Rating250 deg F Maximum, 45 - 86 deg F Adjustable
Additional Information
ASHRAE/ANSI 102-1983
Features & Benefits
- Thermostatic radiator valves regulate the flow of hot water or low pressure steam through free-standing radiators, baseboards or convectors in hot water and two pipe steam systems Valves are fitted with a packing gland assembly that is replaceable while the system is in operation EPDM rubber valve disc provides a seal against the valve seat at differential pressures of upto 15 lbf/sq-in in hot water heating systems, while 15 lbf/sq-in for low pressure steam systems Manual plastic cap supplied to protect the valve pushpin and provide manual control of the valve during installation Valves remain normally open with no operator-mounted Brass bonnet, spindle, nickel-plated tailpiece, union nut, EPDM disc, packing O-ring, stainless steel spring
