Victaulic®
VIC V014726X01 1 1/2 BLV 726-S 316SS BDY & TRM 2 POS HDL W L/D B014122616
Victaulic®
VIC V014726X01 1 1/2 BLV 726-S 316SS BDY & TRM 2 POS HDL W L/D B014122616
MFG #V014726X01
Item #544265
Mfr. Part #V014726X01
UPC #688304532818

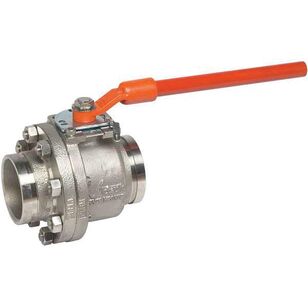

Victaulic® High Pressure Ball Valve, 726S Series, 1-1/2 in Nominal, Grooved Connection, Standard Port, 1000 psi, Water Media, 1-1/4 in Orifice, 5.12 in Inlet to Outlet Length, 3 in Top to Inlet Center, Handle Operator, 130 Cv Flow Coefficient (Cv), 316 Stainless Steel Body, RTFE Seat, Fluoroelastomer Seal, 316 Stainless Steel Ball, 20 to 250 deg F, 1.9 in OD
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,924.50 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandVictaulic®
Ball Material316 Stainless Steel
Body Material316 Stainless Steel
Connection TypeGrooved
Dimensions1.9 " OD
Flow Coefficient (Cv)130
Inlet to Outlet Length5.12
MediaWater
Nominal Size1-1/2
Operator TypeHandle
Orifice Size1-1/4
Port TypeStandard
Pressure Rating1000
Seal MaterialFluoroelastomer
Seat MaterialRTFE
Series726S Series
Temperature Rating20 to 250
Top to Inlet Center3
Additional Information
CE Marked|NACE MR0175|NSF/ANSI 372|NSF/ANSI/CAN 61|UKCA Certified|UL Listed
Features & Benefits
- Two-piece, end entry valve featuring a floating ball design Intended for use in full open or shut-off service, throttling is not recommended with standard ball valves Offered with manual handles with integral/tamper-resistant lock/seal and gear operators A full range of power actuators can be mounted
