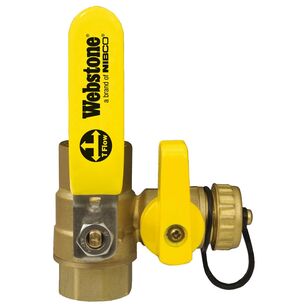

WEBSTONE 40615 1-1/4 IPS BALL DRN
WEBSTONE 40615 1-1/4 IPS BALL DRN
Webstone Ball Drain™ Clean Brass™, 40615, Ball Valve, Standard, Series: Pro-Pal® 4061, 1-1/4 in Nominal, FNPT End Style, 600 psi CWP Pressure, 350 deg F, Full Port, Media: Glycol Mixture/Oil/Water, 3/4 in Orifice, Lever Handle Actuator, 3-1/2 in Inlet to Outlet Length, 3 in Top to Inlet Center, Forged Brass Body, EPDM/PTFE Softgoods, Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$142.50 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Marketing Information
Attributes
BrandWebstone
Actuator TypeLever Handle
Ball MaterialHCP Brass
Body MaterialForged Brass
ColorBrass
Domestic/ImportImport
End StyleFNPT
IndustryHVAC
Inlet to Outlet Length3-1/2"
MediaGlycol Mixture/Oil/Water
Nominal Size1-1/4"
Orifice Size3/4"
Port TypeFull
Pressure Rating600 psi CWP
SeriesPro-Pal 4061
Softgoods MaterialEPDM/PTFE
Temperature Rating350
Top to Inlet Center3"
Trim MaterialBrass/PTFE
TypeStandard
Additional Information
ANSI B1.20.1|PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Features & Benefits
- Reversible handle for added versatility Winterize an entire building with simple quarter-turn actions EPDM washer Blow-out proof stem Replaces 4 components, eliminates 3 leak paths, saves 27 min of labor Exclusive adjustable flow path allows for draining from either side of the ball PTFE seat/stem seal Eliminate three leak path Eliminate assemblies needed to isolate and drain any portion of a piped system With hi-flow hose drain Replace four component
Marketing Information
Designed for residential, commercial or industrial use with water, oil or gas. This approved Webstone valve is actuated by a blow-out proof stem and features an adjustable packing gland. Threaded ends comply with ANSI B1.20.1.
WEBSTONE 40615 1-1/4 IPS BALL DRN
BrandWebstone
MFG #H-40615
Keller #546393
My Part ##
Last Ordered#
$142.50 / ea
