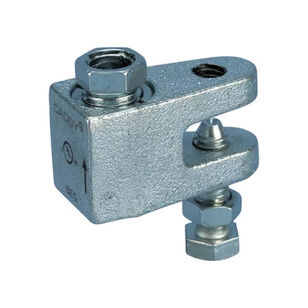

nVent CADDY CRLB37EG Rod Lock Beam Clamp, 3/8 in Rod, 1/8 to 3/8 in Thick Flange, 250 lb Load, Iron, Electro-Galvanized
nVent CADDY CRLB37EG Rod Lock Beam Clamp, 3/8 in Rod, 1/8 to 3/8 in Thick Flange, 250 lb Load, Iron, Electro-Galvanized
nVent CADDY Rod Lock Beam Clamp, 3/8 in Rod, 1/8 to 3/8 in Flange Thickness, 250 lb Load, Iron, Finish: Electro-Galvanized, 2.06 in Overall Length, 1 in Overall Width, 1-3/16 in Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$11.75 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandnVent CADDY
FinishElectro-Galvanized
Flange Thickness1/8 to 3/8
IndustryPlumbing
Load Capacity250 lbs.
MaterialIron
Overall Height1-3/16
Overall Length2.06"
Overall Width1
Rod Size3/8"
Additional Information
cUL listed
Features & Benefits
- Pre-fabricated assemblies easily lift and lock into place, helping to save time and money Easy push-to-install design allows installers to simply push the threaded rod through the mounting hole, instantly holding it in position Lock nut can be finger tightened, locking the rod in place Works with slightly damaged threads and minor burrs on the threaded rod Conforms with Federal Specification WW-H-171 (Type 23) Manufacturers Standardization Society ANSI®/MSS-SP-58 (Type 19 and 23)
Documents
nVent CADDY CRLB37EG Rod Lock Beam Clamp, 3/8 in Rod, 1/8 to 3/8 in Thick Flange, 250 lb Load, Iron, Electro-Galvanized
BrandnVent CADDY
MFG #CRLB37EG
Keller #549118
