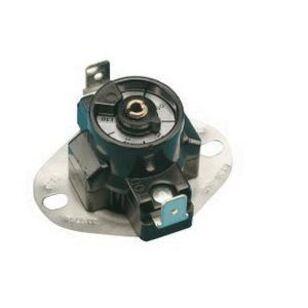

WHITE-RODGERS™ 03F05 1 Fan Control, 120/240 VAC, SPST Switch, Switching Action: Close on Rise
WHITE-RODGERS™ 03F05 1 Fan Control, 120/240 VAC, SPST Switch, Switching Action: Close on Rise
WHITE-RODGERS™ Fan Control, 120/240 VAC Voltage Rating, 25 A at 120/240 VAC Resistive/14 A Full Load/72 A Locked Rotor at 120 VAC/10 A Full Load/60 A Locked Rotor at 240 VAC Inductive Amperage Rating, SPST Switch Type, Close on Rise Switching Action, 90 to 130 deg F, 20 deg F Differential Temperature Rating, Connection Type: 1/4 in Quick Connect, 125 VA Pilot Duty Rating, Flush Mounting Type, 1.78 in L x 2 in W Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$44.64 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandWHITE-RODGERS™
Amperage Rating25 A at 120/240 VAC Resistive/14 A Full Load/72 A Locked Rotor at 120 VAC/10 A Full Load/60 A Locked Rotor at 240 VAC Inductive
Connection Type1/4 " Quick Connect
Dimensions1.78 " L x 2 " W
Mounting TypeFlush
Pilot Duty Rating125
Switch TypeSPST
Switching ActionClose on Rise
Temperature Rating90 to 130 deg F, 20 deg F Differential
Voltage Rating120/240
Additional Information
UL Listed, CSA Certified
Features & Benefits
- Proven reliability in a compact, versatile, cost-effective design High speed contact separation provides long contact life Controls are 100% operation checked 1/4 in quick connect terminals are standard Reduces inventory while providing coverage for a wide range of temperature applications Replaces the majority of fixed disc thermostats now on heating equipment and various appliances Allows you to set the temperature set point to match your specific needs which simplifies inventory Includes thermostat, tab-to-screw terminals
