BS EN 10311 Certified|CE Marked|CPR (EU) No.305/2011 Certified|CPR (UK) 2019 No.465 Certified|EN 10311 Certified|FM Approved|UL Listed|ULC Certificate|VDS Certified|VNIIPO Certified

• Provides a direct branch connection at any location where a hole can be cut in the pipe

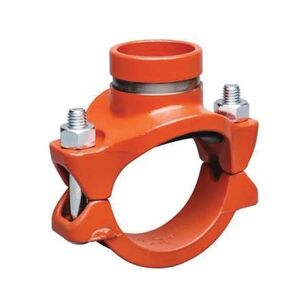

Victaulic Mechanical-T outlet provides a direct branch connection at any location a hole can be cut in pipe. The hole is cut oversize to receive a hole finder locating collar which secures the outlet in position permanently. A pressure responsive gasket seals on the pipe OD. Cross type connections can be achieved by utilizing two upper housings of the same style and size, with the same or differing branch size connections. Note - style 920 and style 920N housings cannot be mated to each other to achieve a cross connection. Style 920 and style 920N Mechanical-T outlets are available with grooved or female threaded outlet. Specify choice on order. Units are supplied painted with plated bolts. Galvanized housings are available, supplied with plated bolts. All sizes of style 920 and 920N are rated at 500 psi or 3450 kPa working pressure on schedule 10 and 40 carbon steel pipe. They may also be used on high density polyethylene or polybutylene pipe. Pressure ratings on HDPE are dependent on the pipe rating. Contact Victaulic for ratings on other pipe. Style 920 and 920N are not recommended for use on PVC plastic pipe. Standard piping practices dictate that the Mechanical-T styles 920 and 920N must be installed so that the main and branch connections are a true 90 deg angle when permanently attached to the pipeline surface. Additionally, the Vic-Tap II hole cutting tool, which allows for hole cutting capabilities on pressurized systems, utilizes the Style 920 Mechanical-T in conjunction with the Series 726 Vic-Ball valve to create the Style 931 Vic-Tap II Mechanical-T unit.
