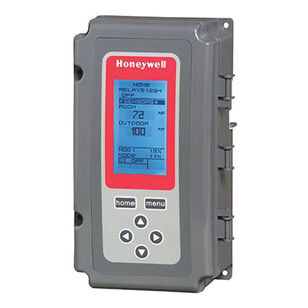

resideo T775B2040/U 4-Stage Electronic Remote Controller, 8 in L Cable
resideo T775B2040/U 4-Stage Electronic Remote Controller, 8 in L Cable
resideo 4-Stage Electronic Remote Controller, 24 VAC, 120/240 VAC, 10 A, 50/60 Hz, 8 in Cable Length, 40 to 140 deg F, 1097 Ohm Sensing Element, SPDT Switching Action, +/-1 deg F Accuracy, NEMA 4X Enclosure, Field-Mount, LCD Display Additional Information
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$961.81Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Additional Information1097 Ohm Sensing Element, SPDT Switching Action, +/-1 deg F Accuracy, NEMA 4X Enclosure, Field-Mount, LCD Display
Amperage Rating10
Cable Length8
Frequency Rating50/60
IndustryHVAC
Temperature Rating40 to 140
Voltage Rating24 VAC, 120/240 VAC
Additional Information
C-Tick Approved|cUL Listed|UL 60730
Features & Benefits
- Save time on installations with the easy-to-use graphical interface, large display and the intuitive programming Use the time clock scheduler or digital input to control the setback and disable output options to help save energy Protect equipment from freezing or over heating on models with the modulating high or low limit control option Get pinpoint control on modulating outputs by setting the integral and derivative times (PI or PID) Configure models with reset in a few easy steps Control floating actuators with floating outputs on select models Eliminate the need for a separate time delay device and protect equipment with the minimum off time option Sensor 50021579-001 included with non-NEMA 4X models Sensor T775-SENS-WR included with NEMA-4X models
Documents
Marketing Information
The T775 electronic remote temperature controllers are the next generation of commercial and agricultural controls capable of remote sensing of temperature and providing switched and/or proportional outputs to various types of loads.
resideo T775B2040/U 4-Stage Electronic Remote Controller, 8 in L Cable
BrandHoneywell
MFG #T775B2040/U
