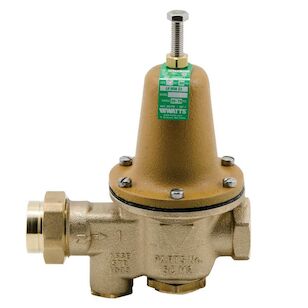

WATTS® LFU5B Series 0009100 Pressure Reducing Valve, 1/2 in Nominal, FNPT, 300 psi, 33 to 160 deg F
WATTS® LFU5B Series 0009100 Pressure Reducing Valve, 1/2 in Nominal, FNPT, 300 psi, 33 to 160 deg F
WATTS® Pressure Reducing Valve, LFU5B Series, 1/2 in Nominal, FNPT Connection, 300 psi, Water Media, Copper Silicon Body, Stainless Steel Seat, EPDM Disc, Stainless Steel Trim, Lead-Free, 33 to 160 deg F, 5-1/2 in L x 3-1/16 in W x 5-7/8 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,649.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Body MaterialCopper Silicon
Connection TypeFNPT
Dimensions5-1/2 " L x 3-1/16 " W x 5-7/8 " H
Disc MaterialEPDM
MediaWater
Nominal Size1/2
Pressure Rating300
Seat MaterialStainless Steel
SeriesLFU5B Series
Temperature Rating33 to 160
Trim MaterialStainless Steel
Shipping Dimensions (L x W x H)6.5" x 6.44" x 3"
Additional Information
ANSI A112.26.2|CSA B356|IAPMO Listed
Features & Benefits
- FNPT threaded union inlet by FNPT outlet Sealed spring cage with stainless steel cage screws Serviceable in line without special tools Integral stainless steel strainer removable for cleaning
Documents
Marketing Information
This 1/2 in lead-free high performance water pressure reducing valve with a lead-free cast copper silicon alloy body is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure.
WATTS® LFU5B Series 0009100 Pressure Reducing Valve, 1/2 in Nominal, FNPT, 300 psi, 33 to 160 deg F
BrandWATTS®
MFG #0009100
Keller #551481
