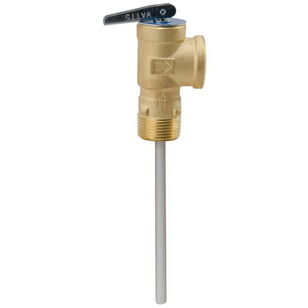

WATTS® 556000 Temperature and Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT, 150 psi, 210 deg F, Copper Alloy Body
WATTS® 556000 Temperature and Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT, 150 psi, 210 deg F, Copper Alloy Body
WATTS® Temperature and Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT Connection, 150 psi, Lever Actuator, Copper Alloy Body, 210 deg F, 3-11/64 in H x 1-5/32 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$71.25 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Actuator TypeLever
ApplicationFor water heater and hot water storage tank
Body MaterialCopper Alloy
Connection TypeMNPT x FNPT
Dimensions3-11/64 " H x 1-5/32 " W
IndustryPlumbing
Nominal Size3/4
Pressure Rating150
Temperature Rating210
Additional Information
ASME Specified|CSA Certified
Features & Benefits
- Unique thermostat with special thermo-bonded coating Stainless steel springs Thermostat is accurate and proven and exclusively designed and manufactured by Watts 8 in L thermostat
Documents
Marketing Information
WATTS® Regulators Series LF100XL temperature and pressure relief valves are used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105000 Btu/hr. They feature a lead-free copper alloy body with MNPT inlet and FNPT outlet connections, unique thermostat with special thermo-bonded-coating and a test lever. Model LF100XL-8 is also available with 8 in extension thermostat.
WATTS® 556000 Temperature and Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT, 150 psi, 210 deg F, Copper Alloy Body
BrandWATTS®
MFG #0556000
Keller #552126
My Part ##
Last Ordered#
$71.25 / ea
