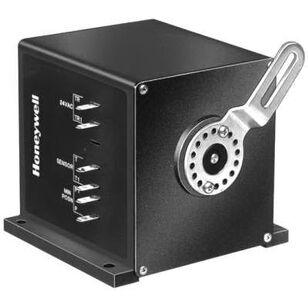

Honeywell M7215A1008/U Damper Actuator, 24 VAC, 90 sec Open Nominal, 18 sec Spring Return Nominal Timing

Name: Honeywell M7215A1008/U Damper Actuator, 24 VAC, 90 sec Open Nominal, 18 sec Spring Return Nominal Timing
Brand: Honeywell
SKU: 552567
Price: 749.82 USD
Availability: OutOfStock

Honeywell

Honeywell M7215A1008/U Damper Actuator, 24 VAC, 90 sec Open Nominal, 18 sec Spring Return Nominal Timing

MFG #M7215A1008/U

Item #552567

Mfr. Part #M7215A1008/U

UPC #085267200554

Honeywell Damper Actuator, 24 VAC, 50/60 Hz, 8 V-A Driving, 3 V-A Holding VA, Quick Connect Electrical Connection, 90 sec Open Nominal, 18 sec Spring Return Nominal Timing, 25 in-lb Torque, -25 to 125 deg F Operating, -30 to 150 deg F Storage, 5 - 95% RH Non-Condensing Humidity, 5 in W x 4-1/2 in H x 5-3/16 in D, Proportional Control Signal, Foot Mounting, 90 deg Stroke

Why Create an Account?

Ability to track orders
More Options & Savings
Amazing Customer Service

$749.82 / ea

Out of Stock

Attributes
Additional Information
Features & Benefits
Documents

Attributes

BrandHoneywell

ApplicationFor use with W7212/13/14 economizers, W7215 economizers

Control SignalProportional

Dimensions5 " W x 4-1/2 " H x 5-3/16 " D

Electrical ConnectionQuick Connect

Frequency Rating50/60

Humidity Rating5 - 95% RH Non-Condensing

Mounting Type'

Stroke90

Temperature Rating-25 to 125 deg F Operating, -30 to 150 deg F Storage

Timing Range90 sec Open Nominal, 18 sec Spring Return Nominal

Torque Rating25

VA Rating8 V-A Driving, 3 V-A Holding

Voltage Rating24
