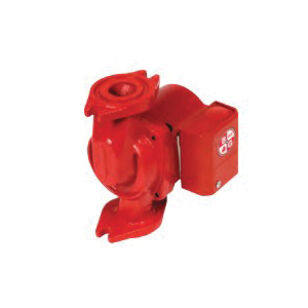

Bell & Gossett NRF Series NRF-33 103350 Red Fox Circulator Pump, 0 to 37 gpm, 125 W, 115 V, 1.1 A, 60 Hz, 2950 rpm Motor
MFG #103350
Item #55364
Mfr. Part #103350
UPC #683328033501
Bell & Gossett Red Fox Circulator Pump, NRF Series, Model: NRF-33, 0 to 37 gpm Flow Rate, 12 ft Maximum Head, 125 W, 115 V, 1.1 A, 60 Hz, 150 psi Maximum Pressure, 2950 rpm Motor Speed Rating, 1/15 hp, 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Connection, Flanged Connection, 1 ph Phase, In-Line Mounting, 225 deg F, Iron, 6-3/8 in H x 5-9/16 in W x 4-7/8 in D, Additional Information: Noryl Impeller Material
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
$503.52Â /Â ea
In Stock
Attributes
Additional Information
Features & Benefits
Documents
Attributes
BrandBell & Gossett
Additional InformationNoryl Impeller Material
Amperage Rating1.1
Connection Size3/4 ", 1 ", 1-1/4 ", 1-1/2 "
Connection TypeFlanged
Dimensions6-3/8 " H x 5-9/16 " W x 4-7/8 " D
Flow Rate0 to 37
Frequency Rating60
HP Rating1/15
IndustryHydronics
MaterialIron
Maximum Head12
Maximum Pressure150
ModelNRF-33
Motor Speed Rating2950
Mounting Type"-Line
Phase1
Power Rating125
SeriesNRF Series
Temperature Rating225
Voltage Rating115
Additional Information
CSA Certified|cUL/UL Listed
Features & Benefits
Double sintered carbon bearing
Ceramic shaft
High starting torque provides years of trouble-free start-ups
Unique B&G DuraGlide bearing system assures whisper quiet, maintenance-free operation
Closed impeller design improves operating efficiency
Wet rotor circulator
Stabilized, heat resistant, non-metallic impeller, its closed design improves operating efficiency
Self-cleaning particle shield protects the shaft and bearings from system start-up debris
