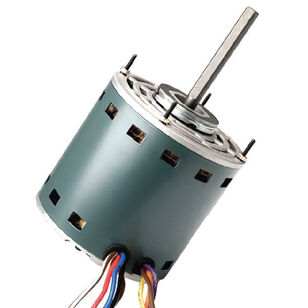

DiversiTech® WG840584 Blower Motor, 208 to 230 V, 2.2 A, 1/4 hp, 1075 rpm Speed, 60 Hz, Air Over Motor Enclosure
DiversiTech® WG840584 Blower Motor, 208 to 230 V, 2.2 A, 1/4 hp, 1075 rpm Speed, 60 Hz, Air Over Motor Enclosure
DiversiTech® Blower Motor, 208 to 230 V, 2.2 A, 1/4 hp, 1075 rpm, 60 Hz, Air Over Motor Enclosure, 48 Frame, 1/2 in Dia x 4-1/2 in L Shaft, Clockwise, Counter-Clockwise Rotation, 3 Speed, Sleeve Bearing, Shaft Up, Shaft Down, Belly Band Mounting, Direct Drive, B Insulation Class, Gray-Green Powder-Coated, 140 deg F, 5.59 in Dia x 9.133 in L
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$278.26 / ea
In Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandDiversiTech®
Amperage Rating2.2
Bearing TypeSleeve
Dimensions5.59 " Dia x 9.133 " L
Drive TypeDirect
FinishGray-Green Powder-Coated
Frame Size48
Frequency Rating60
HP Rating1/4
Includes2-1/2 in Dia Hub Rings
IndustryHVAC
Insulation ClassB
Motor Enclosure TypeAir Over
Mounting TypeShaft Up, Shaft Down, Belly Band
Number of Speeds3
Rotation TypeClockwise, Counter-Clockwise
Shaft Size1/2 " Dia x 4-1/2 " L
Speed Rating1075
Temperature Rating140
Voltage Rating208 to 230
Features & Benefits
- Equipped with an automatic thermal overload protection Installs with all standard 48 frame mounting brackets Electrically reversible Standard 48 frame motor casing Quiet operation Low power consumption Capacitor 5 uF at 370 VAC Continuous-duty cycle One side flat shaft
