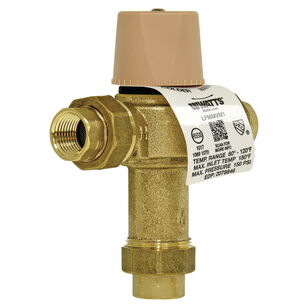

WATTS® LFMMV Series 0559116 Thermostatic Mixing Valve, 1/2 in Nominal, FNPT x Threaded, 0.5 to 20 gpm, 150 psi
WATTS® LFMMV Series 0559116 Thermostatic Mixing Valve, 1/2 in Nominal, FNPT x Threaded, 0.5 to 20 gpm, 150 psi
WATTS® Thermostatic Mixing Valve, LFMMV Series, 1/2 in Nominal, FNPT x Threaded Connection, 150 psi, 0.5 to 20 gpm Flow Rate, Water Media, 3-3/16 in Inlet to Outlet Length, Copper Silicone Alloy Body, Buna-N/EPDM Seal, Stainless Steel Disc, Buna-N/EPDM Softgoods, Finish: Rough Bronze, 200 deg F, 5-7/16 in H x 4-7/8 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$609.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
ApplicationFor supplying sinks, baths, showers or lavatories with tempered water
Body MaterialCopper Silicone Alloy
Connection TypeFNPT x Threaded
Dimensions5-7/16 " H x 4-7/8 " W
Disc MaterialStainless Steel
FinishRough Bronze
Flow Rate0.5 to 20
Inlet to Outlet Length3-3/16
MediaWater
Nominal Size1/2
Pressure Rating150
Seal MaterialBuna-N/EPDM
SeriesLFMMV Series
Softgoods MaterialBuna-N/EPDM
Temperature Rating200
WarrantyLimited
Additional Information
ASSE 1017, 1069, 1070|IAPMO Approved|CSA B125.3, B125.70|cUPC Certified
Features & Benefits
- Thermal actuation technology for precise temperature control Locking mechanism secures temperature setting Lead-free brass construction Solid wax hydraulic principle thermostat assures dependable mixing of hot and cold-water Thermostat controls both hot and cold-water Adjustment cap with locking feature Integral filter washers and check valves
Marketing Information
This 1/2 in lead-free thermostatic mixing valve is designed for residential, commercial or institutional environments for supplying baths or lavatories with tempered water. The double throttling design controls both hot and cold-water supply to the mixed outlet. It consists of a lead-free brass body, threaded union connections, solid wax hydraulic principle thermostat, integral filter washers and check valves with a locking mechanism for the temperature setting. The adjustable field range temperature at mixed outlet is 80 to 120 deg F (27 to 49 deg C). The maximum pressure rating is 150 psi (10.3 bar).
WATTS® LFMMV Series 0559116 Thermostatic Mixing Valve, 1/2 in Nominal, FNPT x Threaded, 0.5 to 20 gpm, 150 psi
BrandWATTS®
MFG #0559116
Keller #559611
