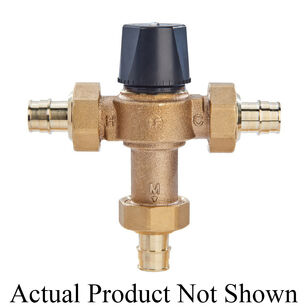

POWERS™ HydroGuard® LFLM495 Series LFLM495 1 1/2 Thermostatic Mixing Valve, 1/2 in Nominal, FNPT, 0.5 gpm, 125 psi
POWERS™ HydroGuard® LFLM495 Series LFLM495 1 1/2 Thermostatic Mixing Valve, 1/2 in Nominal, FNPT, 0.5 gpm, 125 psi
POWERS™ Thermostatic Mixing Valve, LFLM495 Series, 1/2 in Nominal, FNPT Connection, 125 psi, Pressure Class: 125 lb, 0.5 gpm Flow Rate, Water Media, 4.875 in Inlet to Outlet Length, Copper Silicone Alloy Body, 80 to 120 deg F, 5 7/16 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$613.50 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandPOWERS™
Body MaterialCopper Silicone Alloy
Connection TypeFNPT
Dimensions5-7/16 " H
Flow Rate0.5
Inlet to Outlet Length4-7/8
MediaWater
Nominal Size1/2
Pressure Class125
Pressure Rating125
SeriesLFLM495 Series
Temperature Rating80 to 120
Warranty1 Year
Additional Information
ASSE 1017|cUPC Certified|CSA B125.3|IAPMO Approved|NSF/ANSI/CAN 61, 372
Features & Benefits
- Adjustable temperature selection with locknut to prevent tampering Quickly senses and compensates for outlet temperature fluctuations caused by temperature and pressure changes in the supply line Lead-free brass body and corrosion-resistant internal components ensure years of dependable service For single and multiple lavatory applications where the water temperature must be controlled for safe use
Marketing Information
HydroGuard® LFLM495 thermostatic tempering valves are designed for individual and multiple lavatory applications where the temperature of hot water must be controlled for safe, economic use. An advanced thermal actuator quickly senses and compensates for outlet temperature fluctuations induced by water temperature and pressure changes in the supply line. The Series LFLM495 features power's advanced paraffin based actuation technology, integral checks and inlet screens to prevent cross flow and contamination. Rugged construction features solid lead free brass body and corrosion resistant internal components ensuring years of dependable, trouble free service. Temperature adjustment handle is simple to adjust and has a locking mechanism to prevent tampering. The HydroGuard® Series LFLM495 is ASSE 1069 and 1070 listed and CSA B125 certified.
