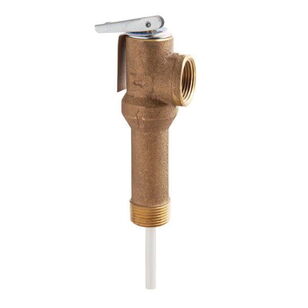

WATTS® LLL100XL Series 0556004 Temperature and Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT, 150 psi, 210 deg F
WATTS® LLL100XL Series 0556004 Temperature and Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT, 150 psi, 210 deg F
WATTS® Temperature and Pressure Relief Valve, LLL100XL Series, 3/4 in Nominal, MNPT x FNPT Connection, 150 psi, Water Media, Lever Actuator, Brass Body, 210 deg F, 5-3/16 in H x 1-7/8 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$148.50 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Actuator TypeLever
ApplicationFor water heaters
Body MaterialBrass
Connection TypeMNPT x FNPT
Dimensions5-3/16 " H x 1-7/8 " W
MediaWater
Nominal Size3/4
Pressure Rating150
SeriesLLL100XL Series
Temperature Rating210
Additional Information
ASME Specified|CSA Certified
Features & Benefits
- Features a unique thermostat with special thermo-bonded coating Stainless steel springs Thermostat is accurate and proven and exclusively designed and manufactured by Watts Suitable for water heaters with up to 3 in of insulation 105000 Btu/hr nominal capacity
Marketing Information
This 3/4 in extra extended shank temperature and pressure relief valve is used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105000 Btu/hr. It features an extended shank for installation on water heaters with extra thick insulation as well as a lead-free bronze body with MNPT inlet and FNPT outlet connections, unique thermostat with special thermo-bonded-coating and a test lever. It is suitable for water heaters with up to 3 in (76.2 mm) of insulation. It is ASME-rated and CSA certified. The temperature relief is 210 deg F (99 deg C), the pressure relief range is 75 to 150 psi (5.2 to 10.3 bar) and the standard pressure setting is 150 psi (10.55 bar).
WATTS® LLL100XL Series 0556004 Temperature and Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT, 150 psi, 210 deg F
BrandWATTS®
MFG #0556004
Keller #560890
My Part ##
Last Ordered#
$148.50 / ea
