CSA C22.2 No 199|UL 372/1998

• Water-resistant Thermostat and boiler control compatible Customizable pre-time and post-time Three-status lights for system monitoring and diagnostics Welded relay protection with redundant motor relays Limited reset and limited recycle Sleek, modern design Technician pump prime mode Two-communication ports for adding alarm contacts, programming display and/or future

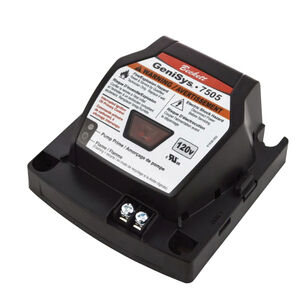

The Beckett® GeniSys® 7505 oil burner control is a 120 VAC primary safety control for residential and light commercial oil burners used in boiler, furnace and water heater applications. The GeniSys® 7505 is used with the GeniSys® CAD cell flame detector kit 7006U to control the oil burner's motor, igniter and optional solenoid valve. It has front-mounted, 24 VAC thermostat terminals compatible with both mechanical and many power stealing thermostats. The control operates the burner with interrupted ignition with a 15 s lockout time. With the GeniSys® 52082 contractor tool or the new BeckettLink® Pro contractor tool 7652, the control can be programmed with pre-purge and post purge timings. For diagnostics, the GeniSys® 7505 stores the last 15 cycles.
