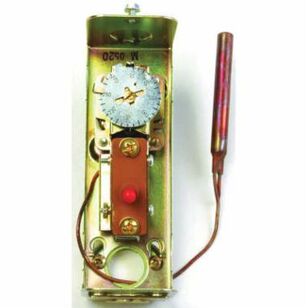

Honeywell Home Aquastat® L4006E1117/U High Limit Manual Controller, SPST, Gray, 100 to 240 deg F
Honeywell Home Aquastat® L4006E1117/U High Limit Manual Controller, SPST, Gray, 100 to 240 deg F
Honeywell Home Aquastat® High Limit Manual Controller, 8 A, 120 V, 3/8 x 2-7/8 in Bulb, 1-1/2 in Capillary Length, 3/4-14 Well Spud, NPT Connection, 8 A at 120 VAC, 5.1 A at 240 VAC Full Load Contact Rating, SPST Contact Configuration, SPST Switching Action, Gray, 100 to 240 deg F, 5-5/8 in H x 2 in W x 2-1/8 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$738.38 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Amperage Rating8
Bulb Size3/8 x 2-7/8
Capillary Length1-1/2
ColorGray
Connection TypeNPT
Contact ConfigurationSPST
Contact Rating8 A at 120 VAC, 5.1 A at 240 VAC Full Load
Dimensions5-5/8 " H x 2 " W x 2-1/8 " D
IndustryHVAC
Switching ActionSPST
Temperature Rating100 to 240
Voltage Rating120
Well Spud Size3/4-14
Additional Information
AGA Certified|CSA File LR95329-1|UL 1294
Features & Benefits
- Totally enclosed micro Switch™ snap-acting switches operate on temperature rise to set point Visible control point scale and external adjustment screw permit easy setting Horizontal or vertical insertion of the sensing element Direct or well immersion of the sensing element Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications Select models include heat conductive compound Select models have wells
Marketing Information
Aquastat® controllers from resideo are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks and other applications where temperature control is required. L4006 are used in applications that utilize the existing wells.
Honeywell Home Aquastat® L4006E1117/U High Limit Manual Controller, SPST, Gray, 100 to 240 deg F
BrandHoneywell
MFG #L4006E1117/U
Keller #562184
My Part ##
Last Ordered#
$738.38 / ea
