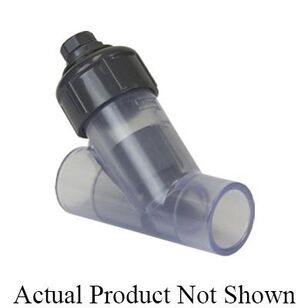

SPEARS 1622-012 1-1/4 PVC Y-CHK VLV
SPEARS 1622-012 1-1/4 PVC Y-CHK VLV
Spears® Y-Check Valve, 1-1/4 in Nominal, Socket Connection, 150 psi, 200 deg F, Water Media, 5-9/16 in Inlet to Outlet Length, 4-9/32 in Top to Inlet Center, PVC Body, EPDM Softgoods, Gray, 5-5/16 in H, Domestic/Import: Domestic, Additional Information: 33.8 Cv Rating, Molded PVC Material Construction
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$361.46 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSpears®
Additional Information33.8 Cv Rating, Molded PVC Material Construction
Body MaterialPVC
ColorGray
Connection TypeSocket
Dimensions5-5/16 " H
Domestic/ImportDomestic
Inlet to Outlet Length5-9/16
MediaWater
Nominal Size1-1/4
Pressure Rating150
Softgoods MaterialEPDM
Temperature Rating200
Top to Inlet Center4-9/32
Additional Information
ASTM F1970
Features & Benefits
- Chemical and corrosion-resistant PVC construction Improved flow characteristics over ball checks, outperforms spring loaded designs Easy access cap for in-line cleanout and servicing Suitable for either horizontal or vertical up-flow installations Assembled with silicone-free, water soluble lubricants
Marketing Information
Spears® Y-check valves are an angle-type check valve that automatically stops reverse flow by the dead weight of the disc plug. Y-checks are less affected by turbulent flow and typically have lower shut-off characteristics than ball checks. Valves are available in PVC gray, PVC clear and CPVC materials in IPS sizes 1/2 in through 4 in with socket, SR threaded or flanged end connections, plus true Union styles with socket and SR threaded ends.
