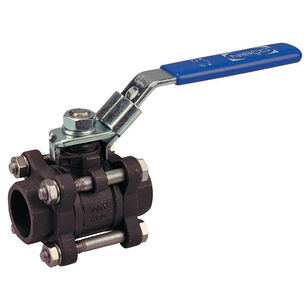

NIBCO® T-595-CS-R-66-LL Series NL99J48 3-Piece Ball Valve, 3/4 in, FIPT, Carbon Steel, 1000 psi
NIBCO® T-595-CS-R-66-LL Series NL99J48 3-Piece Ball Valve, 3/4 in, FIPT, Carbon Steel, 1000 psi
NIBCO® 3-Piece Ball Valve, T-595-CS-R-66-LL Series, 3/4 in Nominal, FIPT Connection, Full Port, 1000 psi, Water Media, 3.03 in Inlet to Outlet Length, 2.87 in Top to Inlet Center, 0.81 in Opening, Quarter-Turn Locking Lever Handle Operator, 37 Cv Flow Coefficient (Cv), Material Standard: ASTM A216/A276/A283, Carbon Steel Body, RPTFE Seat, 316 Stainless Steel Stem, RPTFE Seal, 316 Stainless Steel Trim, PTFE Packing, Carbon Steel Handle, Stainless Steel Ball, PTFE Softgoods, 400 deg F, 3.03 in L, Domestic/Import: Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$240.10 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Ball MaterialStainless Steel
Body MaterialCarbon Steel
Connection TypeFIPT
Dimensions3.03 " L
Domestic/ImportImport
Flow Coefficient (Cv)37
Handle MaterialCarbon Steel
Inlet to Outlet Length3.03
Material StandardASTM A216/A276/A283
MediaWater
Nominal Size3/4
Opening Size0.81
Operator TypeQuarter-Turn Locking Lever Handle
Packing MaterialPTFE
Port TypeFull
Pressure Rating1000
Seal MaterialRPTFE
Seat MaterialRPTFE
SeriesT-595-CS-R-66-LL Series
Softgoods MaterialPTFE
Stem Material316 Stainless Steel
Temperature Rating400
Top to Inlet Center2.87
Trim Material316 Stainless Steel
Warranty5 Year Limited
Shipping Dimensions (L x W x H)4.53"
Additional Information
MSS SP 110
Features & Benefits
- Valve pressure rating 1000 psi non-shock cold working pressure Blowout-proof stem Vented ball
Documents
Marketing Information
The NIBCO® ball valve provides ease of operation with quarter-turn (90 deg) open to close. The reinforced PTFE seat ring and stainless steel ball/stem exhibit high chemical resistance properties and is recommended for process piping. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO® ball valves are backed by the exclusive NIBCO® Inc. 5 years 125% limited warranty.
