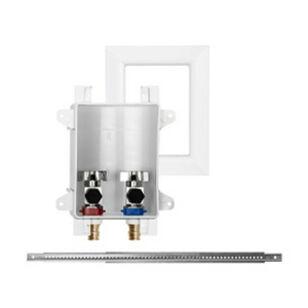

Sioux Chief OxBox™ 696 Series 696-G2001WF Lavatory Outlet Box, 1/2 x 3/8 in, PEX x Compression, Quarter-Turn Valve
Sioux Chief OxBox™ 696 Series 696-G2001WF Lavatory Outlet Box, 1/2 x 3/8 in, PEX x Compression, Quarter-Turn Valve
Sioux Chief OxBox™ Lavatory Outlet Box, 696 Series, 1/2 x 3/8 in Connection, PEX x Compression Connection, Quarter-Turn Valve, 4 in Box Width, 3-1/2 in Box Depth, 5-1/2 in Box Height, ABS Box, 5-3/4 in Faceplate Width, 7-1/4 in Faceplate Height, ABS Faceplate, Brass Valve
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$50.88 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSioux Chief
Box Depth3-1/2
Box Height5-1/2
Box MaterialABS
Box Width4
Connection Size1/2 x 3/8
Connection TypePEX x Compression
Faceplate Height7-1/4
Faceplate MaterialABS
Faceplate Width5-3/4
Series696 Series
Valve MaterialBrass
Valve TypeQuarter-Turn
Additional Information
ASME A112.18.1|ASSE 1010|ASTM F1960|cUPC Certified|IAPMO Listed|NSF 372
Features & Benefits
- Durable ABS box mounts securely to stud or between studs Included debris covers protect box/valve from dust, mud and paint
Marketing Information
Sioux Chief 696 Series Supply OxBox™ shall be used where necessary in residential or commercial plumbing supply systems. Access box can be secured directly to vertical stud or between studs using galvanized bracket. Supply line(s) can be installed from above or below. Arrester variations can be installed with arresters at any angle. Unit shall be available with quarter-turn valves. Metal support bracket shall install into top/bottom tracks of box. Outlet connections shall be generally 3/8 in. Outlet connections should generally be provided with a test/tamper-resistant cap. Every unit shall include a debris cover for protection during rough-in. Valves will be plated. Arrester option handles can be operated together (single throw) or independently.
