SIOUX 696RG1000WF OXBOX FIRE RATED ICE F1960 W/FRAME LEAD FREE
SIOUX 696RG1000WF OXBOX FIRE RATED ICE F1960 W/FRAME LEAD FREE

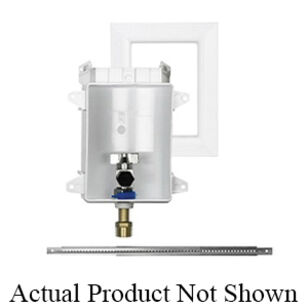

Sioux Chief OxBox™ Fire-Rated Ice Maker Outlet Box, 696R Series, 1/2 x 1/4 in Connection, PEX x Compression Connection, Quarter-Turn Valve, 4 in Box Width, 3-1/2 in Box Depth, 5-1/2 in Box Height, ABS Box, 5-7/8 in Faceplate Width, 7-1/4 in Faceplate Height, ABS Faceplate, Brass Valve
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$85.03 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSioux Chief
Box Depth3-1/2
Box Height5-1/2
Box MaterialABS
Box Width4
Connection Size1/2 x 1/4
Connection TypePEX x Compression
Faceplate Height7-1/4
Faceplate MaterialABS
Faceplate Width5-7/8
IndustryPlumbing
Series696R Series
Valve MaterialBrass
Valve TypeQuarter-Turn
Additional Information
ASME A112.18.1|ASSE 1010|ASTM F1960|IAPMO Listed|NSF 372|UPC Certified|Warnock Hersey SC/WA120, W/N 14409
Features & Benefits
- Durable ABS boxes with quarter-turn ball valves Mounts securely over stud or between studs Included debris covers protect boxes from dust, mud and paint
Marketing Information
Sioux Chief 696 Series OxBox™ fire-rated outlet box shall be used where necessary in plumbing systems. Unit shall allow for mounting with supply lines from top or bottom, on-stud or between-studs. Unit shall include plated, quarter-turn valve with 1/4 in compression outlet. Valve outlets shall be provided with tamper-resistant test caps. Metal support bracket can be installed into tracks of box. Designed in accordance with IAPMO PS 54-2021a.
