Sioux Chief 867-L3AP Planter Area Drain With UV Resistant Polypropylene Strainer, Stainless Steel Mesh, 16 in H, Dome
Sioux Chief 867-L3AP Planter Area Drain With UV Resistant Polypropylene Strainer, Stainless Steel Mesh, 16 in H, Dome

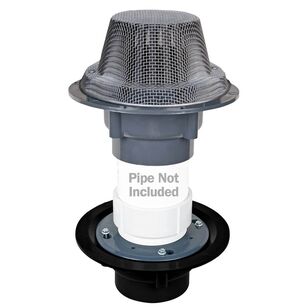

Sioux Chief Planter Area Drain With UV Resistant Polypropylene Strainer, Stainless Steel Mesh, 867 Series, Dome Shape, 3 in Connection, Hub Connection, ABS, 10 in Flange, 8-1/8 in Width, 16 in Height, Additional Information: 3-3/4 in H Lower Body, 4-1/4 in H Dome/Screen, 8 in Dia Dome/Screen, 4 in H Upper Body
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$190.32Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSioux Chief
Additional Information3-3/4 " H Lower Body, 4-1/4 " H Dome/Screen, 8 " Dia Dome/Screen, 4 " H Upper Body
Connection Size3
Connection TypeHub
Flange Size10
Height16
MaterialABS
Series867 Series
ShapeDome
Width8-1/8
Additional Information
ASTM D2661
Features & Benefits
- Perfect for indoor atriums, green roof installations, ground-level plant boxes, etc All corrosion-resistant materials - ABS/PVC, polypro, stainless steel and brass Provides an economical, adjustable alternative to heavy cast iron models
Documents
Marketing Information
Sioux Chief 867 series adjustable planter area drain shall be used where necessary in drainage systems. Drain shall allow adjustment within the planter box using contractor-supplied 4" Sch. 40 pipe. Lower drain body shall include an FIP thread clamping collar and thread x hub adapter. Upper drain body shall include a clamping collar/gravel guard and dome strainer. Drain shall have a Sch. 40 hub connection, which conforms to ASTM D2665 (PVC) or D2661 (ABS). Connection to drainage system shall be made with a solvent weld joint to ABS/PVC pipe.
Sioux Chief 867-L3AP Planter Area Drain With UV Resistant Polypropylene Strainer, Stainless Steel Mesh, 16 in H, Dome
BrandSioux Chief
MFG #867-L3AP
Keller #563808
My Part ##
Last Ordered#
$190.32Â /Â ea
