ASSE 1048|AWWA C510-97|cCSAus B64.5|cULus Listed|FM Approved|Approved by The Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)

• Stainless steel single housing with access sleeve Furnished with a cubic feet per minute meter Replaceable check disc rubber Compact construction allows for smaller vaults and enclosures Tri-link check valve assembly provides the lowest pressure loss Stainless steel construction provides long term corrosion protection and maximum strength The maximum working pressure is 175 psi (12.06 bar)

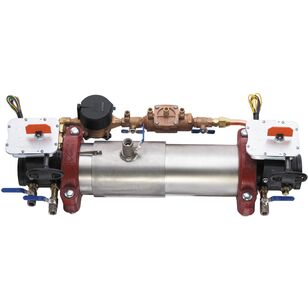

This Maxim(TM) 4 inch double check detector backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. It is ideal for protection at cross-connections identified as non-health hazards such as on fire sprinkler systems and from other contaminants found at the service line entrance. This compact modular design with a single access sleeve for easy maintenance is approved for horizontal or vertical installation in accordance with the direction of the flow arrow on the assembly. It consists of a stainless steel body, tri-link check valves, grooved gear operated butterfly valves with tamper switch, and four test cocks. It comes furnished with a cubic feet per minute meter to detect underground leaks and unauthorized water use.
