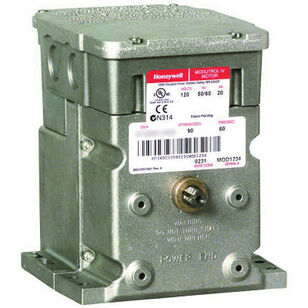

Honeywell Modutrol IV 90 M9184A1019/U Electric Actuator, 24 V, 30 - 60 sec Nominal Timing, Die-Cast Aluminum
Honeywell Modutrol IV 90 M9184A1019/U Electric Actuator, 24 V, 30 - 60 sec Nominal Timing, Die-Cast Aluminum
Honeywell Modutrol IV Electric Actuator, Series: 90, 24 V, 50/60 Hz, 15 V-A Driving VA, Quick Connect Terminal Electrical Connection, 30 - 60 sec Nominal Timing, Die-Cast Aluminum, 150 in-lb Torque, -40 to 150 deg F Ambient, 5-1/2 in W x 6-7/16 in H x 7-5/16 in D, Proportional Control Signal, Foot Mounting, Square Shaft Design, 3/8 in Shaft, 90 - 160 deg Adjustable, Asymmetrical Stroke
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,565.62Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHoneywell
Control SignalProportional
Dimensions5-1/2 " W x 6-7/16 " H x 7-5/16 " D
Electrical ConnectionQuick Connect Terminal
Frequency Rating50/60
IndustryHVAC
MaterialDie-Cast Aluminum
Mounting Type'
Series90
Shaft DesignSquare
Shaft Size3/8
Stroke90 - 160 deg Adjustable, Asymmetrical
Temperature Rating-40 to 150 deg F Ambient
Timing Range30 - 60 sec Nominal
Torque Rating150
VA Rating15 V-A Driving
Voltage Rating24
Additional Information
UL Listed, E4436
Features & Benefits
- Integral junction box provides NEMA 3 weather protection if motor is mounted in the upright position Integral spring return returns motor to normal position when power is interrupted Motor and circuitry operate from 24 VAC models available with factory installed transformer or a field added internal transformer Quick connect terminals are standard screw terminal adapter is available Adapter bracket for matching shaft height of older motors is available Motors have field adjustable stroke 90 - 160 deg Integral auxiliary switches are available factory-mounted or can be field added Spring return motors can operate valve linkages from power end or auxiliary end shafts for normally closed or normally open valve applications All models have dual shafts (slotted and tapped on both ends) All models have auxiliary switch cams Fixed torque throughout the entire voltage range Motors are designed for either normally open or normally closed valves and dampers
Documents
Honeywell Modutrol IV 90 M9184A1019/U Electric Actuator, 24 V, 30 - 60 sec Nominal Timing, Die-Cast Aluminum
BrandHoneywell
MFG #M9184A1019/U
Keller #565640
