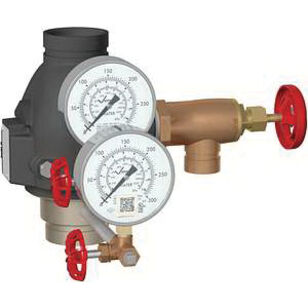

Victaulic® FIRELOCK™ 717HR Series V030717PHR High Pressure Riser Check Valve With Riser Check Kit, 3 in Nominal, Grooved
Victaulic® FIRELOCK™ 717HR Series V030717PHR High Pressure Riser Check Valve With Riser Check Kit, 3 in Nominal, Grooved
Victaulic® FIRELOCK™ High Pressure Riser Check Valve With Riser Check Kit, 717HR Series, 3 in Nominal, Grooved Connection, 365 psi, Water Media, 6.62 in Inlet to Outlet Length, 3.31 in Top to Inlet Center, Material Standard: ASTM A536 Grade 65-45-12, Ductile Iron Body, Nitrile Seat, Nitrile Seal, Stainless Steel Disc, 300 Stainless Steel/Nitrile Trim, Nitrile Softgoods, Finish: Black Polymeric-Coated, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,215.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandVictaulic®
Body MaterialDuctile Iron
Connection TypeGrooved
Disc MaterialStainless Steel
Domestic/ImportDomestic
FinishBlack Polymeric-Coated
Inlet to Outlet Length6.62
Material StandardASTM A536 Grade 65-45-12
MediaWater
Nominal Size3
Pressure Rating365
Seal MaterialNitrile
Seat MaterialNitrile
Series717HR Series
Softgoods MaterialNitrile
Top to Inlet Center3.31
Trim Material300 Stainless Steel/Nitrile
Additional Information
CCC Marked|CE Marked|cULus Listed|FM Approved|LPCB Listed|VDS Approved|UKCA Approved
Features & Benefits
- Features a stainless steel disc which seats against the O-ring seal, when mounted on the electroless nickel-plated face Includes upstream and downstream pressure taps, must specify riser check kit when ordered Prevents backflow Single disc mechanism incorporates a spring-assisted feature for non-slamming operation Can be installed either vertically (flow upwards only) or horizontally Valve body cast with arrow indicator to assist with proper valve orientation
Victaulic® FIRELOCK™ 717HR Series V030717PHR High Pressure Riser Check Valve With Riser Check Kit, 3 in Nominal, Grooved
BrandVictaulic®
MFG #V030717PHR
Keller #568858
