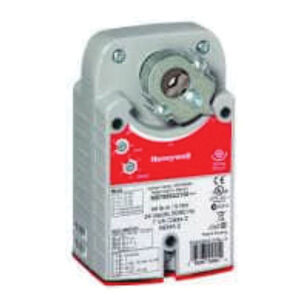

Honeywell MS8105A1130/U Direct Coupled Actuator, 24 VAC/VDC, 8 A, 45 s Timing, Plastic

Honeywell MS8105A1130/U Direct Coupled Actuator, 24 VAC/VDC, 8 A, 45 s Timing, Plastic

Honeywell MS8105A1130/U Direct Coupled Actuator, 24 VAC/VDC, 8 A, 45 s Timing, Plastic

MFG #MS8105A1130/U

Item #571103

Mfr. Part #MS8105A1130/U

UPC #085267468190

Honeywell Direct Coupled Actuator, 8 A, 24 VAC/VDC, 50/60 Hz, VA Rating: 3 VA, 6 VA, Enclosed Screw Terminal Strip Electrical Connection, 45 s Timing Range, Plastic, 44 in-lb Torque, 20 dBA, 50 dBA Noise Level, -22 to 149 deg F, NEMA 2, IP54 Enclosure, 5 to 95 % Humidity Rating, 7 in H x 3-7/8 in W x 3-1/8 in D, Spring Return Action, Screw Connection, 2-Position SPST Control Signal, Direct Couple Mounting, Mechanically Rotation, 5 deg Rotation Angle, Self-Centering Clamping Shaft Adapter, 3/8 to 5/8 in Round, 1/4 to 1/2 in Center Shaft, 95 deg Stroke

Why Create an Account?

  • Ability to track orders
  • More Options & Savings
  • Amazing Customer Service
$456.30 / ea
Out of Stock
Attributes
BrandHoneywell
Action TypeSpring Return
Amperage Rating8
ApplicationHVAC Applications
Connection TypeScrew
Control Signal2-Position SPST
Dimensions7 " H x 3-7/8 " W x 3-1/8 " D
Electrical ConnectionEnclosed Screw Terminal Strip
Enclosure TypeNEMA 2, IP54
Frequency Rating50/60
Humidity Rating5 to 95
IncludesMounting Bracket and Self-Centering Shaft Adapter
IndustryHVAC
MaterialPlastic
Mounting TypeDirect Couple
Noise Level20 dBA, 50 dBA
Rotation Angle5
Rotation TypeMechanically
Shaft AdapterSelf-Centering Clamping
Shaft Size3/8 to 5/8 " Round, 1/4 to 1/2 " Center
Stroke95
Temperature Rating-22 to 149
Timing Range45
Torque Rating44
VA Rating3 VA, 6 VA
Voltage Rating24
