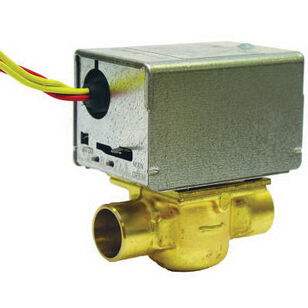

Honeywell 1000 Series V8043E1004/U Valve, 1/2 in, Sweat, 3.5 Cv, Brass
Honeywell 1000 Series V8043E1004/U Valve, 1/2 in, Sweat, 3.5 Cv, Brass
Honeywell Valve, 1000 Series, 1/2 in Nominal, Sweat Connection, Number of Ways/Position: 2-Ways, 2-Position, 125 psi, 3.5 Cv Flow Coefficient (Cv), Buna-N Trim, Buna-N Disc, Brass, 7.7 VA Power Consumption, Normally Open, Normally Closed, 0.32 A, 24 VAC, 125 deg F, 4 in H x 3-1/2 in W x 2-3/8 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$305.49Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHoneywell
Amperage Rating0.32
ConfigurationNormally Open, Normally Closed
Connection TypeSweat
Dimensions4 " H x 3-1/2 " W x 2-3/8 " D
Disc MaterialBuna-N
Flow Coefficient (Cv)3.5
MaterialBrass
Nominal Size1/2
Number of Ways/Position2-Ways, 2-Position
Power Consumption7.7
Pressure Rating125
Series1000 Series
Temperature Rating125
Trim MaterialBuna-N
Voltage Rating24
Additional Information
UL Listed, file MH11826
Features & Benefits
- On-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water Manual opener for valve operation on power failure, valve returns to automatic position when power is restored All model may be installed without disassembling the valve Compact construction for easy installation Complete power head may be removed or replaced without breaking plumbing line connections or draining the system Actuator motor may be replaced without removing the valve body or draining the system Use this valve in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water 15 s open time 18 in lead electric connection Spring return to close valve action 50 VA pilot-duty at 24 V, 4.4 a running with 26.4 A inrush at 120 V end switch rating No SPST auxiliary end switch Buna-N (NBR) rubber ball plug/ball/disc material EPDM rubber packing material Mounted in any position on a vertical line
