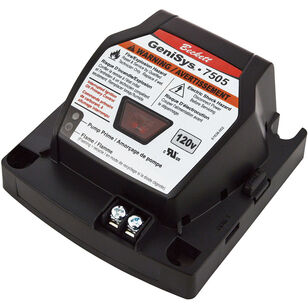

Beckett® GeniSys 7505A0000U Oil Burner Control, 102 - 132 VAC, 24 VAC Thermostat, 100 mA
Beckett® GeniSys 7505A0000U Oil Burner Control, 102 - 132 VAC, 24 VAC Thermostat, 100 mA
Beckett® GeniSys Oil Burner Control, 7505 Model, 102 - 132 VAC, 24 VAC Thermostat, 100 mA, 15 sec Lockout, -40 to 150 deg F, Less Than 20 gal/hr
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$142.20 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandBeckett®
Amperage Rating100
ApplicationFor residential and light commercial oil burners
Flow Rate<20
Lockout Time15
Model7505
Temperature Rating-40 to 150
Voltage Rating102 to 132 VAC, 24 VAC Thermostat
Warranty5 Year
Additional Information
UL 372 and UL 1998 Listed and CSA C22.2 Number 199 Certified
Features & Benefits
- Thermostat and boiler control compatible Customizable pre-time and post time (3) status lights for system monitoring and diagnostics Welded relay protection with redundant motor relays Limited reset and limited recycle Sleek, modern design Cad cell resistance indicator Technician pump prime mode Two communication ports for adding alarm contacts, programming display and future wireless communications Output - 120 VAC motor, igniter, solenoid valve, 0.1 A thermostat anticipator current
Marketing Information
The Beckett GeniSys advanced burner control is a 120 VAC primary safety control for residential and light commercial oil burners used in boiler, furnace and water heater applications. The GeniSys is used with a suitable cad cell flame sensor to control the oil burner motor, igniter and optional solenoid valve. It has 24 VAC thermostat terminals (if applicable) compatible with both mechanical and many power stealing thermostats. It can provide interrupted or intermittent duty ignition and it has a 15 sec lockout time.
Beckett® GeniSys 7505A0000U Oil Burner Control, 102 - 132 VAC, 24 VAC Thermostat, 100 mA
BrandBeckett®
MFG #7505A0000U
Keller #571583
