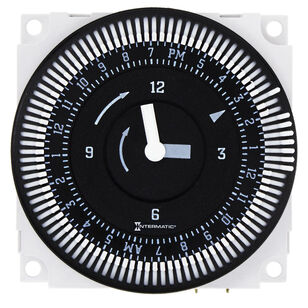

Intermatic® FM1STUZ-240U FM1 Timer Module, 240 VAC, 21 A, 60 Hz, 24 hr Timing, SPDT
Intermatic® FM1STUZ-240U FM1 Timer Module, 240 VAC, 21 A, 60 Hz, 24 hr Timing, SPDT
Intermatic® FM1 Timer Module, 240 VAC, 21 A, 60 Hz, 1 hp, 2 hp, SPDT, 24 hr, Switch Rating: 1350 W at 120 VAC Tungsten, 21 A at 120 to 250 VAC Resistive, Panel Mount, Quick-Connect Terminal, -4 to 185 deg F, 60 mm H x 60 mm W x 32 mm D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandIntermatic®
Amperage Rating21
ApplicationFor 12, 24 VAC/VDC, 120 or 208/240 VAC single-phase general applications
Contact ConfigurationSPDT
Dimensions60 mm H x 60 mm W x 32 mm D
Frequency Rating60
Mounting TypePanel
Power Rating1 hp, 2 hp
Switch Rating1350 W at 120 VAC Tungsten, 21 A at 120 to 250 VAC Resistive
Temperature Rating-4 to 185
Terminal TypeQuick-Connect
Timing Range24
Voltage Rating240
Warranty1 Year
Additional Information
cCSAus Certified|CE Marked|cULus Recognized
Features & Benefits
- They are a simple and low cost alternative for applications that do not require more than 21 A or 2 hp, 240 VAC The FM1 is designed for 24 hr or 7 day control or overriding a functional typical state of a heating, ventilation, refrigeration, lighting, security or pump system Seven days carry over battery backup Noise-immune, ideal for robust applications Synchronous drive or quartz drive Q models with self-recharging battery backup True clock face, easy to set 96 on/off per day Clear plastic cover (DC-FME-A), sold separately below 15 min minimum on/off time Stand alone or with indoor/outdoor enclosure, sold separately
Intermatic® FM1STUZ-240U FM1 Timer Module, 240 VAC, 21 A, 60 Hz, 24 hr Timing, SPDT
BrandIntermatic®
MFG #FM1STUZ-240U
Keller #572593
