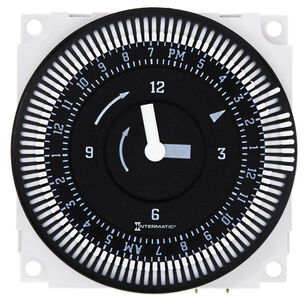

Intermatic® FM1STUZH-240U Electromechanical Timer Module, 208/240 VAC, 21 A, SPDT, 24 hr Max Time Setting
Intermatic® FM1STUZH-240U Electromechanical Timer Module, 208/240 VAC, 21 A, SPDT, 24 hr Max Time Setting
Intermatic® Electromechanical Timer Module, 208/240 VAC, 21 A, 60 Hz, 2 hp HP Rating, SPDT, 15 min Timing Modes, 24 hr Maximum Time Setting, Quick-Connect Terminal Connection Type, 185 deg F Operating, Panel Mount, 2.35 in H x 2.35 in W x 1.25 in D, Additional Information: Black Color, 1/4 in Terminal Connection Size
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandIntermatic®
Additional InformationBlack Color, 1/4 " Terminal Connection Size
Amperage Rating21
ApplicationRefrigeration Merchandiser, Air Movement and Ventilation, Aeration, Septic Treatment, Generator Exercising, Commercial and Industrial Applications
Contact FormSPDT
Dimensions2.35 " H x 2.35 " W x 1.25 " D
Frequency Rating60
HP Rating2
Maximum Time Setting24
Mounting TypePanel
Operating Temperature185
Terminal Connection TypeQuick-Connect
Timing Modes15
Voltage Rating208/240
Warranty1 Year Limited
Shipping Dimensions (L x W x H)3.25" x 3.25" x 2.25"
Additional Information
CE Marked|CSA File No. LR3730|cULus Listed
Features & Benefits
- 21 A SPDT Switch Captive trippers with 15 min intervals on 24 hr models and 2 hr intervals on 7 days models 72 hr carry over battery back-up on Q models Noise immune ideal for robust applications Synchronous drive or quartz drive Q models with self-recharging battery back-up Compact size Clear plastic cover (DC-FME-A), sold separately Standalone or with indoor/outdoor enclosure, sold separately True clock face, easy-to-set
Marketing Information
The FM1 Series timer modules are designed to be integrated inside of a machine control panel, circuit board or other equipment. They are a simple and low cost alternative for applications that do not require more than 21 A or 2 hp, 240 VAC. The FM1 is designed for 24 hr or 7 days control or overriding a functional typical state of a heating, ventilation, refrigeration, lighting, security or pump system. The FM1 Series is ideal for 12, 24 VAC/VDC, 120 or 208/240 VAC single-phase general applications.
