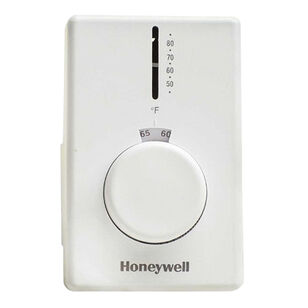

Honeywell T4398A1021/U Electric Heat Thermostat, 120/208/240/277 VAC, 1 Heat
Honeywell T4398A1021/U Electric Heat Thermostat, 120/208/240/277 VAC, 1 Heat
Honeywell Electric Heat Thermostat, 120/208/240/277 VAC, 22 A at 120/208/240 VAC, 19 A at 277 VAC Non-Inductive Resistive, 60 Hz Frequency, 1 Heat Stages, SPST Switch, Vapor Filled Dual Diaphragm Sensing Element, 2 deg F Differential, 50 to 80 deg F Settings, 50 to 80 deg F Ambient, 6 in Copper Lead Wire Connection, 1 deg C Accuracy, Hardwired Power Source, Vertical Mounting, Dimensions: 4-1/2 in H x 2-7/8 in W x 2-5/8 in D, Premier White
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$95.33Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
Brandresideo
Accuracy1
Amperage Rating22 A at 120/208/240 VAC, 19 A at 277 VAC Non-Inductive Resistive
ApplicationFor electric baseboards, convectors and fan forced heaters (resistive rated loads)
ColorPremier White
Connection Type6 " Copper Lead Wire
Differential Temperature2
Dimensions4-1/2 " H x 2-7/8 " W x 2-5/8 " D
Frequency Rating60
IncludesLong-Lasting Micro Switch Mechanism, Thermometer, Range Stops and Locking Cover Screws
IndustryHVAC
Mounting TypeVertical
Power SourceHardwired
Sensing ElementVapor Filled Dual Diaphragm
Stages1 Heat
Switch TypeSPST
Temperature Rating50 to 80 deg F Ambient
Temperature Settings50 to 80
Voltage Rating120/208/240/277
Additional Information
UL E4436, Guider XAPX, CSA LR1322 Certified, UN 2037
Features & Benefits
- Provide precise line voltage control of resistive rated electric heating equipment Extremely sensitive to temperature changes Replace virtually all standard wall-mounted line voltage thermostats Color-coded leads allow easy installation Rugged, plastic mounting base Cover thermometer indicates room temperature Well-suited for upgrades and high end new construction Mounts directly on vertical 2 x 4 in outlet box or on 4 x 4 in outlet box Receptacles, small, containing gas, 2.1 hazmat information Suitable for connecting to aluminum wiring if approved CO/ALR solder less connectors are used
Honeywell T4398A1021/U Electric Heat Thermostat, 120/208/240/277 VAC, 1 Heat
Brandresideo
MFG #T4398A1021/U
Keller #57325
